1995 COLCHESTER TORNADO 300

Machine-Details

Stock-No. 1105-04005

Type of machine CNC Lathe

Make COLCHESTER

Type TORNADO 300

Year of manufacture 1995

Type of control CNC

Storage location HAGUENAU FRANCE

Country of origin Great Britain

Delivery time sofort

Freight basis EX WORK

Technical details

turning diameter 530 mm

turning length 500 mm

control FANUC OT

total power requirement 22 kW

weight of the machine ca. 3.3 t

Additional information

GOOD MACHINE

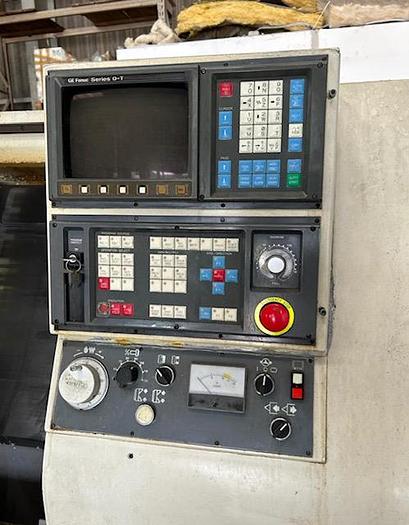

CNC CONTROL FANUC OT

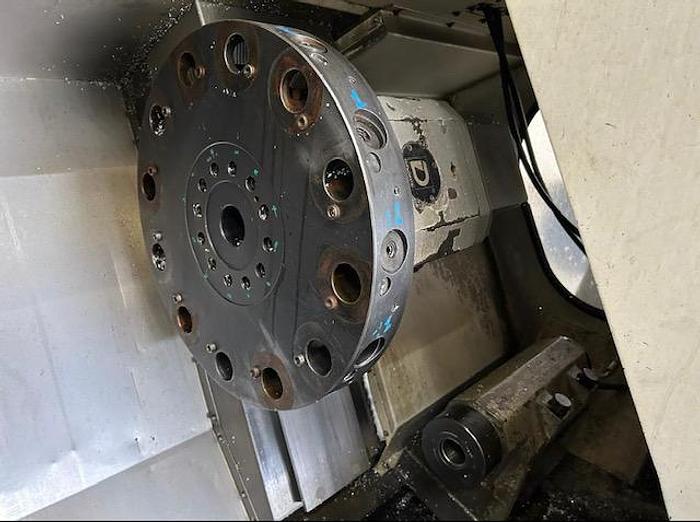

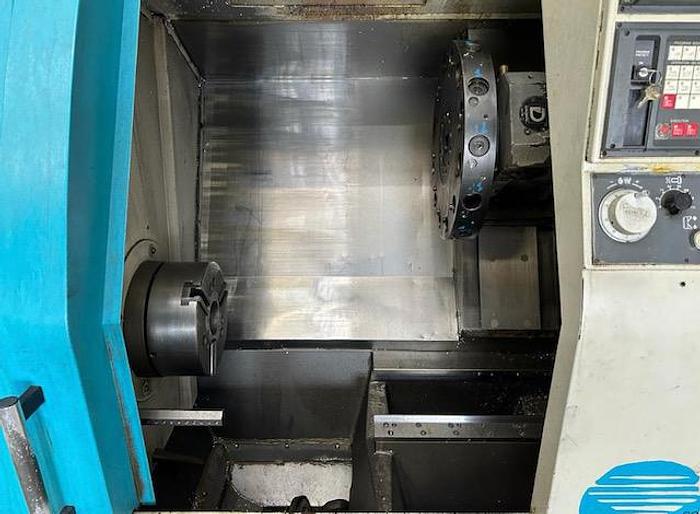

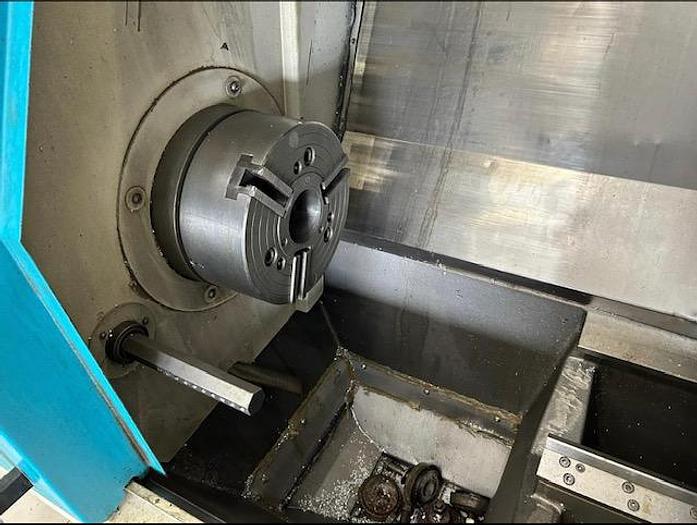

cuck taikstock vdi 40 turret 12 p

chip convoyer

echnical information

Swing over bed

530 mm

Swing over cross-slide

330 mm

Distance centre tot centre

500 mm

Max longitudinal travel Z-axis

20 m/min

Max cross travel X-axis

10 m/min

Spindle cone

A2-8

Dia of spindle bore

90,5 mm

Power on the spindle

22 kW

Number of speeds

4000 rpm

Command

Fanuc

Total power needed

53 kVa

Length

3500 mm

Width

1500 mm

Height

2100 mm

Weight

3,3 ton

Toolchanger

yes

Number of tools

12 tools

Additional info

Chipconveyor

VDI-tooling
