Description
CNC Turning- with live tools
INDEX G 200

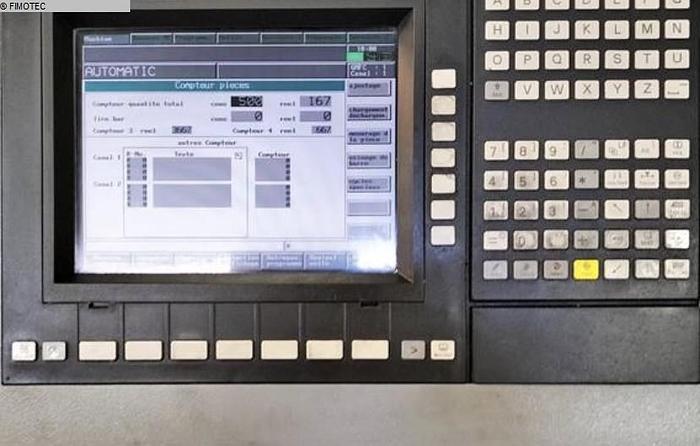

control SIEMENS 840 C

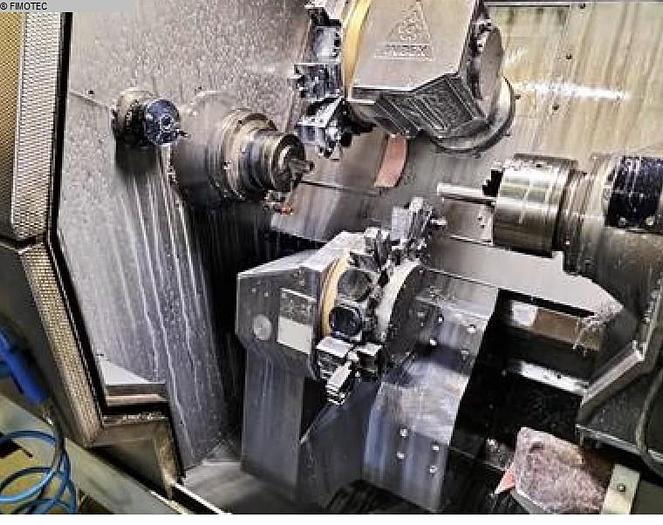

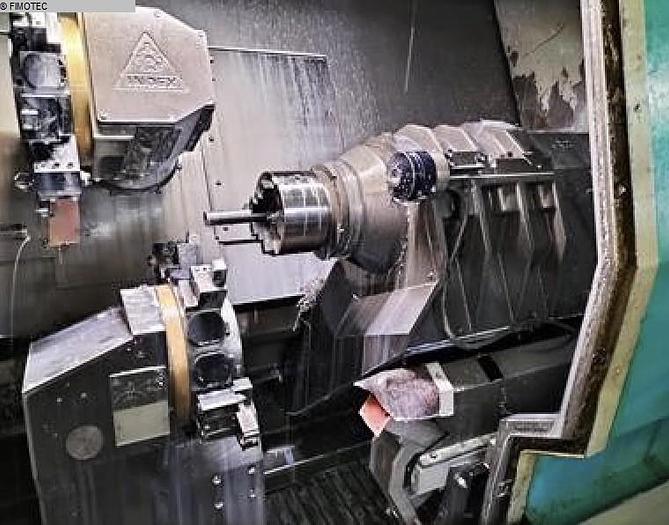

WITH SUP SPINDEL 2 TURRET AND Y AXIS + LIVE TOOLS
Caractéristiques
| Fabricant | INDEX |
| Modèle | G 200 |
| Année | 1997 |
| Condition | D'occasion |
| Numéro de stock | 1105-03632 |
| Controls | CNC, C200- Siemens 840 C |
| Country of origin | Germany |
| Delivery time | immediately |
| Delivery terms | ex Site |
| Turning diameter | 200 mm |
| Turning length | 400 mm |
| Swing diameter | 420 mm |
| Bar diameter | 65 mm |
| Chuck diameter | 165 mm |
| Turning speed range - spindle | ~ 6.000 U/min |
| Drive capacity - spindle motor | 40% ED= 13,3/22 kW |
| Spindle bearing diameter | 100 mm |
| Clamping chuck diameter | 165 mm |
| C - axis | 0,001 ° |
| Number of turrets | 1 . |
| Turret (x-stations) | 1 x 14 pos |
| Travel -x axis | 120 mm |
| Travel -z axis | 400 mm |
| Spindle speed driven tools | ~ 6.000 min -1 |
| Rapid traverse x-axis | 22,5 m/min |
| Rapid traverse z-axis | 45 m/min |
| Total power requirement | 32 kW |
| Weight of the machine ca. | 4 t |
| Dimensions of the machine ca. | 7,5 x 2,1 x 2,1 m |
