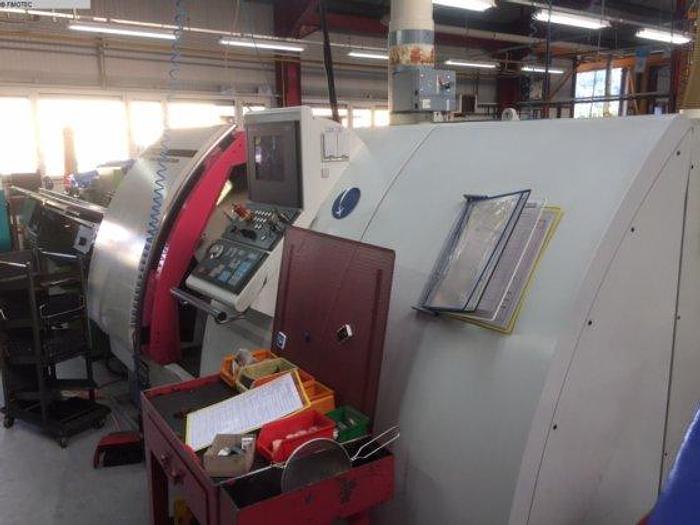

1998 GILDEMEISTER CTX 400
1998 GILDEMEISTER CTX 400
or
Call 330388720247
Description
2-step directly spindle drive

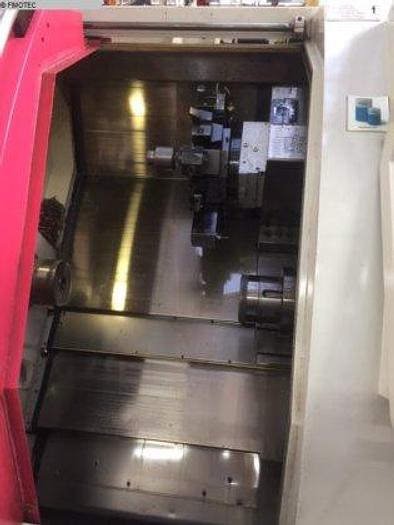

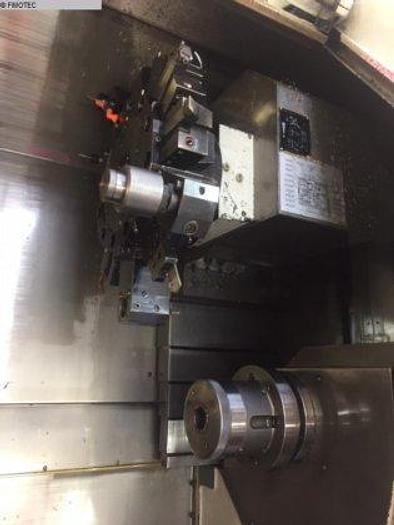

accessory: tail stock, Sauter Revolver twelvefold,
including documentation

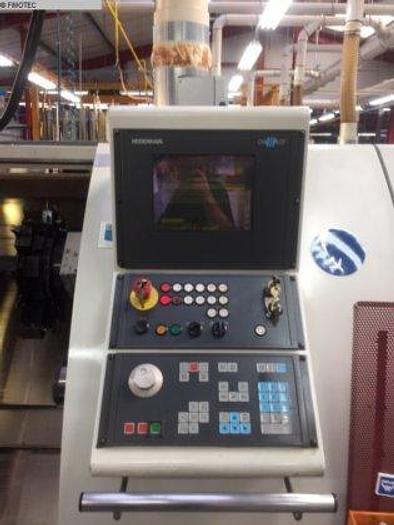

CNC CONTROL HEIDENHEIN TURN PLUS
TOOLS VDI 30 CHIP CONVOYER
Technical details and information subject to amendments and errors.
Specifications
| Manufacturer | GILDEMEISTER |
| Model | CTX 400 |
| Year | 1998 |
| Condition | Used |
| Stock Number | 1105-02520 |
| Control | type 3190 heidenhain EPLturn plus |
| Face stroke | 212 |
| Spindle bore | 72 mm |
| Center height | 260 mm |
| Feeds - cross | 0.5 - 5000 mm / min |
| Freight basis | ex warehouse, free in |
| Turning length | 640 mm |
| Power feed coss | 5000 N |
| Type of control | CNC |
| Chucking diameter | Max. 250 mm |
| Thread pitch max. | 100 mm |
| Longitudinal stroke | 650 mm |
| Feeds - longitudinal | 0.5 - 5000 mm / min |
| Spindle drive, 2-steps | 22 kW |
| Great pass over the bed | 500 mm |
| Hollow spindle diameter | 65 mm |
| Turning speed - range 1 | 20-1250 rpm. |
| Power feed longitudinally | 8000 N |
| Diameter of spindle flange | 140 h5 mm |
| Max. torque on the spindle | 150 Nm |
| Spindle turning speed range | 20 - 5000 rpm |
| Swing diameter over slide rest | 290 mm |
| Spindle diameter in front bearing | 100 mm |
| Rapid travel - longitudinal / face | 10 m / min |
