1999 DOOSAN DAEWOO LYNX 200 B
1999 DOOSAN DAEWOO LYNX 200 B
orCall 330388720247
Description

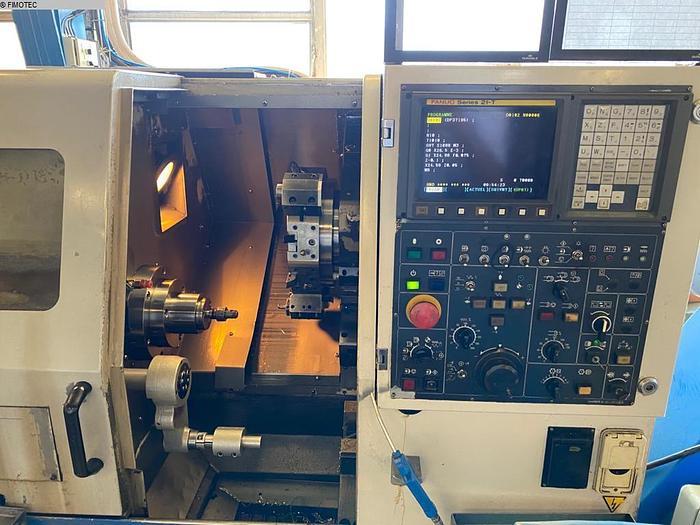

CNC - Lathe
LYNX 200 A

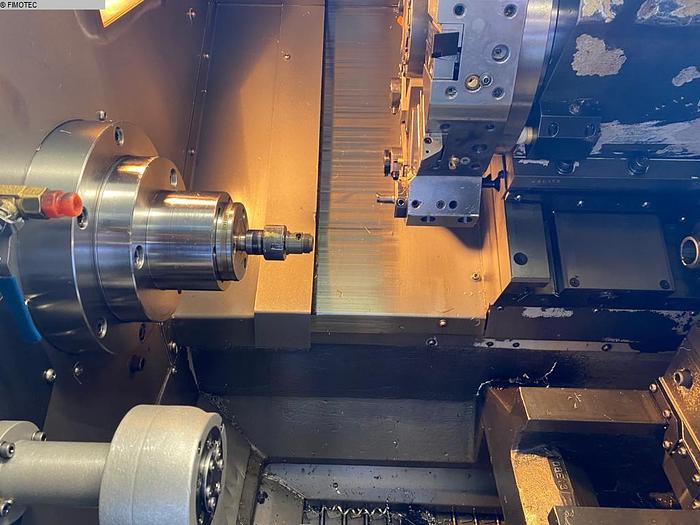

CHUCK TAILSTOCK
FANUC 21 T
Specifications

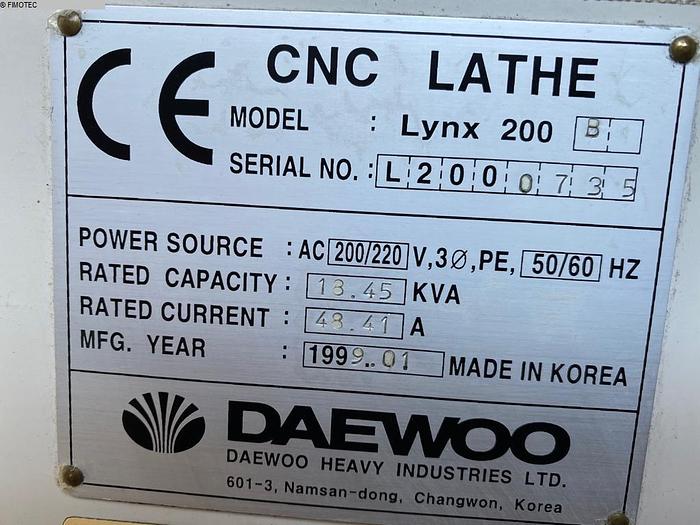

| Manufacturer | DOOSAN DAEWOO |
| Model | LYNX 200 B |
| Year | 1999 |
| Condition | Used |
| Stock Number | 1105-03040 |
| Controls | CNC, Fanuc 21-T |
| Country of origin | KORREA |
| Delivery time | immediately |
| Delivery terms | ex site |
| Turning diameter | 460 mm |
| Turning length | 300 mm |
| Turning diameter over bed | 460 mm |
| Turning dia. over face-slide | 280 mm |
| Travel -x axis | 160 mm |
| Travel -z axis | 330 mm |
| Centre distance | 335 mm |
| Rapid traverse x-axis | 12 m/min |
| Rapid traverse z-axis | 15 m/min |
| Turning speed range - main spindle | 42 - 4.000 U/min |
| Spindle nose | A2-6 |
| Spindle passage | 51 mm |
| Spindle bore | 65 mm |
| Spindle cone | 1/20 |
| Power capacity - main spindel | 7.5 kW |
| No. of tool upper turret | 10 . |
| Shank diameter | 20 (vierkant) mm |
| Tube diameter max. | 62 mm |
| Chucking diameter | 200 mm |
| Coolant tank | 87 l |
| Total power requirement | 15 kW |

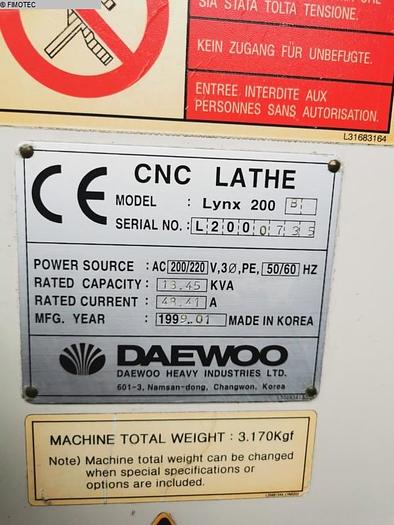

| Weight of the machine ca. | 3,2 t |
| Dimensions of the machine ca. | 1,9 x 1,5 x 1.5 m |
