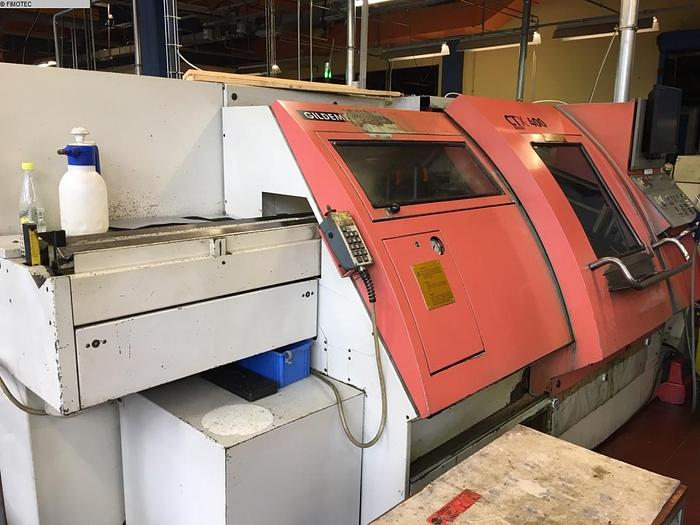

1996 GILDEMEISTER CTX 400
1996 GILDEMEISTER CTX 400
or
Call 330388720247
Description

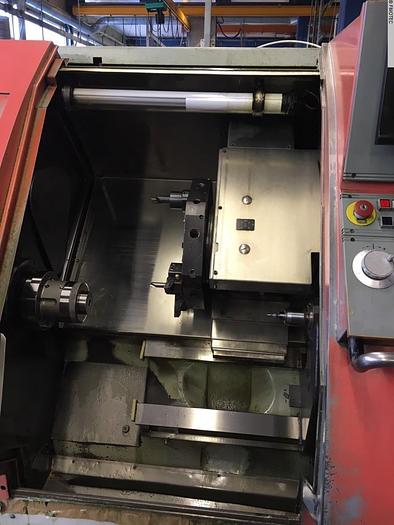

2-step directly spindle drive accessory: tail stock, Sauterrevolver twelvefold, incl. documentation CNC CONTROL HEIDENHEIN EPL TOOLS VDI 30 CHIP CONVOYER
Specifications
| Manufacturer | GILDEMEISTER |
| Model | CTX 400 |
| Year | 1996 |
| Condition | Used |
| Stock Number | 1105-03404 |

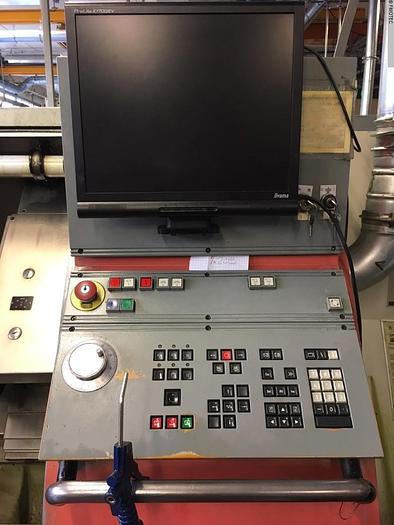

| Controls | CNC, ELECTRO PILOT turn plus |
| Country of origin | germany |
| Delivery time | sofort |
| Delivery terms | ex Warehouse, free in |
| Centre height | 260 mm |
| Turning length | 640 mm |
| Swing diameter over slide rest | 290 mm |
| Greates pass round over bed | 500 mm |
| Diameter of spindle flange | 140 h5 mm |
| Spindle diameter in front bearing | 100 mm |
| Spindle bore | 72 mm |
| Hollow spindle diameter | 65 mm |
| Max. torque on the spindle | 150 Nm |
| Longitudinal stroke | 650 mm |
| Chucking diameter | max. 250 mm |
| Face stroke | 212 |
| Tailstock quill diameter | 80 mm |
| Tailstock quill taper mt | 4 |
| Tailstock travel | 100 mm |
| Feeds - longitudinal | 0,5 - 5000 mm/min |
| Feeds - cross | 0,5 - 5000 mm/min |
| Rapid travel - longitudinal/face | 10 m/min |
| Power feed longitudinal | 8000 N |
| Power feed coss | 5000 N |
| Thread pitch max. | 100 mm |
| Spindle turning speed range | 20 - 5000 U/min |
| Turning speed - range 1 | 20 - 1250 U/min. |
| Spindle drive, 2-steps | 22 kW |
| Dimension coolant reservoir | 1,20 x 0,80 x 1,00 mm |
| Weight of the machine ca. | 5 t |
| Weight of cooling unit | 0,15 t |
