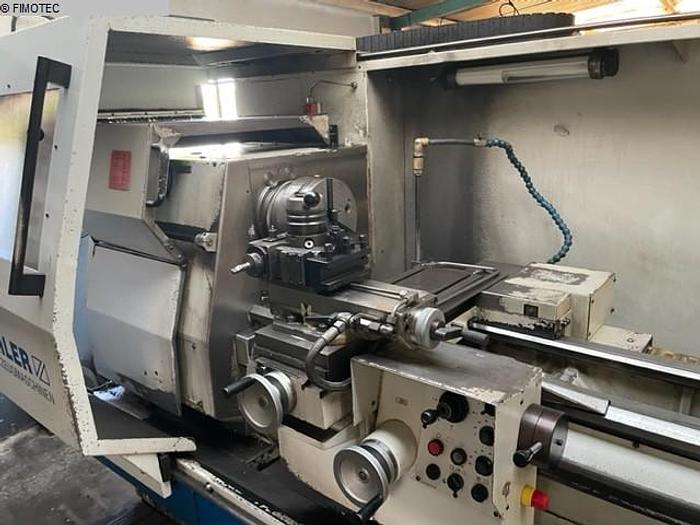

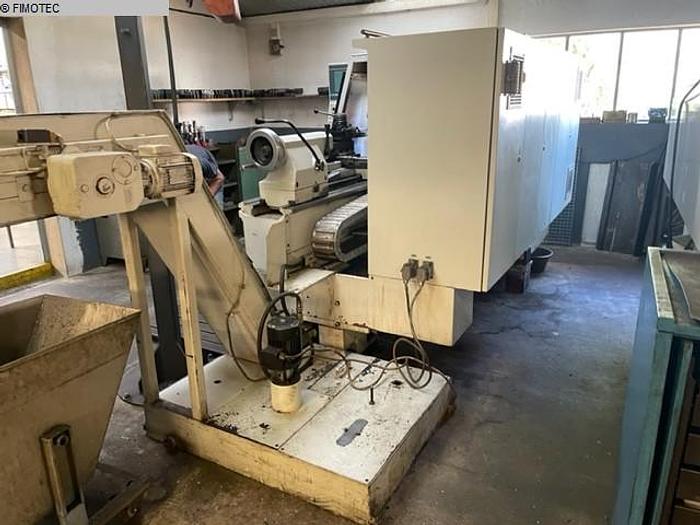

1999 WEILER E 50
1999 WEILER E 50
orCall 330388720247
Description
ACCESSORIES:

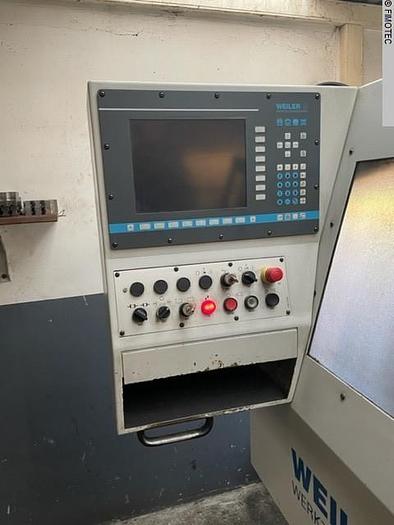

CNC WEILER D1 SIEMENS 810D

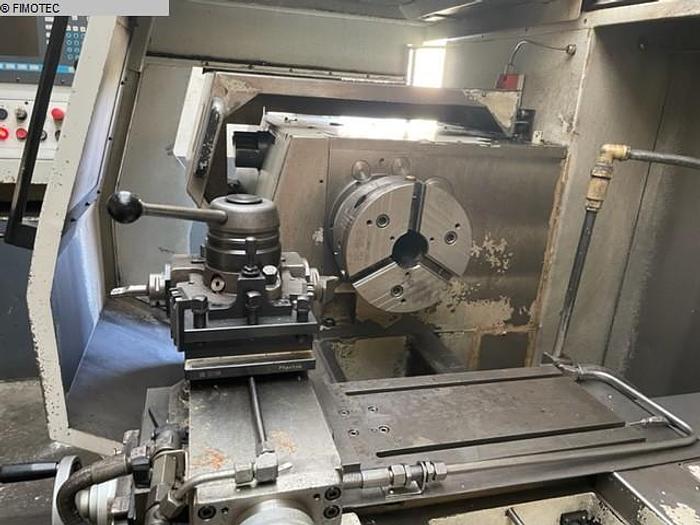

- 3 hand jaw chucks - PARAT HOLDER
- 2 steady rest and 1 follow rest
- cooling unit

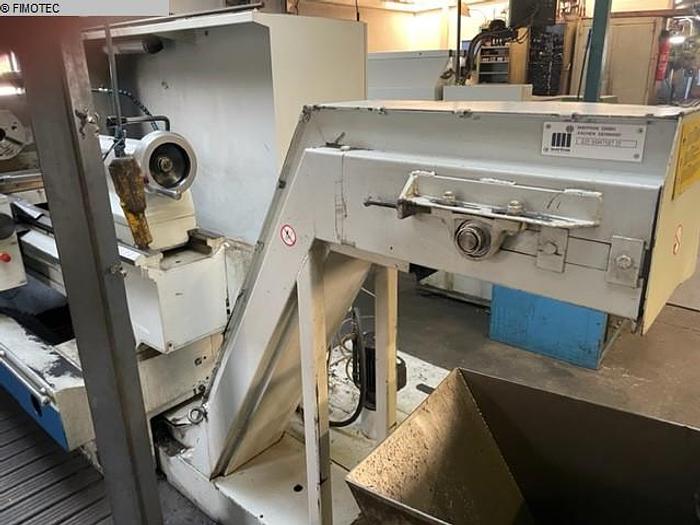

- chip CONVOYER, rear splash guard
- documentation available
CONDITION:
----------
can be inspect under power. GOOD CONDITION

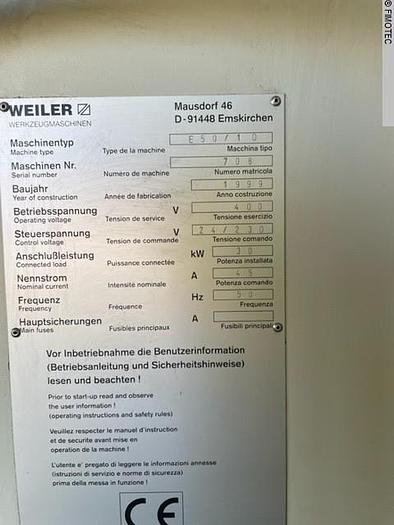

Specifications
| Manufacturer | WEILER |
| Model | E 50 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 1105-03683 |
| Controls | CNC, WEILER / SIEMENS -- |
| Country of origin | germany |
| Delivery time | immediately |
| Delivery terms | EX WORK |
| Turning diameter | 570 mm |
| Turning length | 1500 mm |
| Swing diameter (max) | 570 mm |
| Turning diameter (max) | 340 mm |
| Workpiece length (max) | 1500 mm |
| Workpiece weight max. | 1000 kg |
| Chuck bore diameter | 83 mm |
| Spindle revolutions (min) | 1 /min |
| Spindle revolutions (max) | 2500 /min |
| Number of gears | 2 |
| Drive power (max) | 20 kW |
| Spindle diameter | 100 mm |
| Tool fixture | multifix |
| Sleeve stroke | 160 mm |
| Sleeve diameter | 70 mm |
| Total power consumption | 20 kW |
| Mains voltage | 380 V |
| Space requirements length | 3250 mm |
| Space requirements width | 1650 mm |
