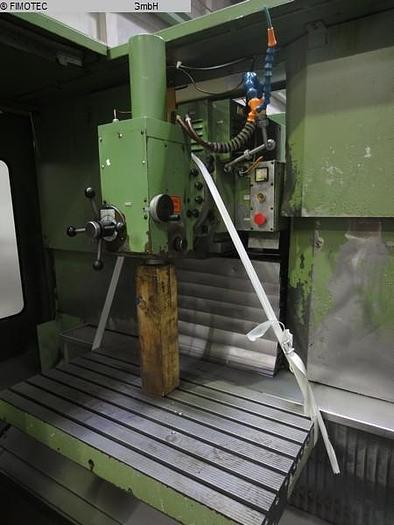

1991 HERMLE UWF 1001
1991 HERMLE UWF 1001
or
Call 330388720247
Description

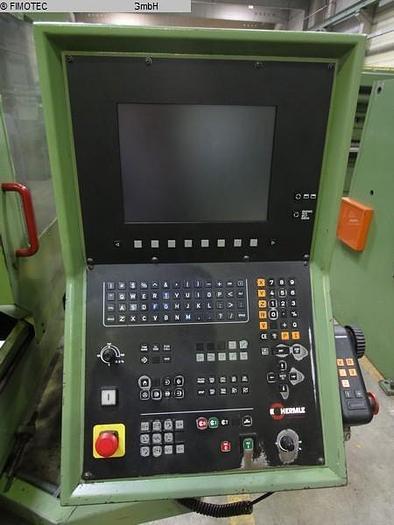

HEIDENHAIN TNC 415
Specifications
| Manufacturer | HERMLE |
| Model | UWF 1001 |
| Year | 1991 |
| Condition | Used |
| Stock Number | 1105-01825 |
| Controls | CNC, Heidenhain 415 |
| Country of origin | Federal Republic of Germany |
| Delivery time | IMMEDIATELY |
| Delivery terms | EXW |
| X-travel | 700 mm |
| Y-travel | 630 mm |
| Z-travel | 500 mm |
| Tool taper | SK 40 (DIN 69871) |

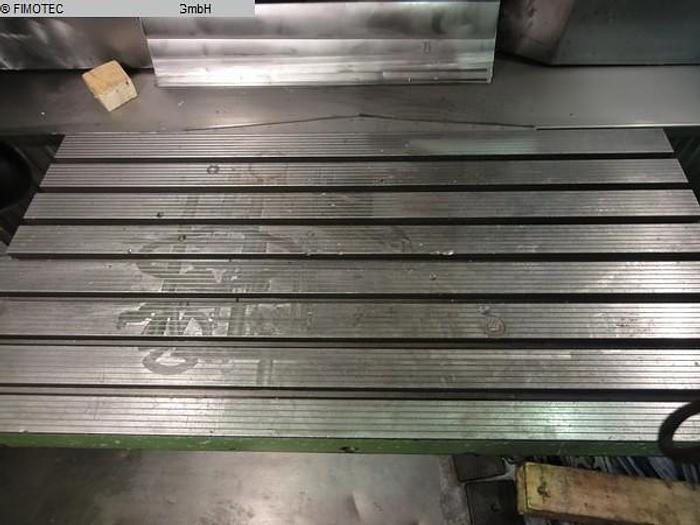

| Table clamping surface | 1000 x 490 mm |
| Spindle turning speed - gearbox stage 1 | 25 - 400 1/min. |
| Spindle turning speed - gearbox stage 2 | 401 - 1260 1/min. |
| Spindle turning speed - gearbox stage 3 | 1261 - 4200 1/min. |
| Feed | 5 m/min |
| Rapid traverse | 10 m/min |
| Slewability of milling head | + / - 90 ° |
| Diameter of quill | 110 mm |
| Quill stroke | 95 mm |
| Total power requirement | 18 kW |
| Weight of the machine ca. | 5 t |
