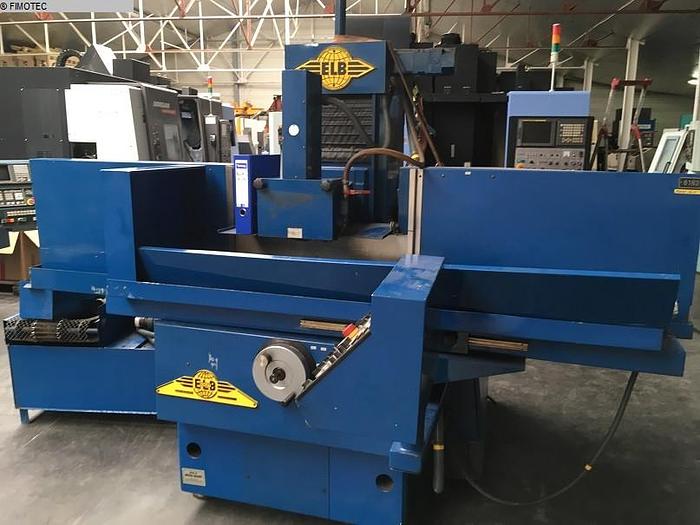

1993 ELB OPTIMAL 4250 NC-K
1993 ELB OPTIMAL 4250 NC-K
orCall 330388720247
Specifications
| Manufacturer | ELB |
| Model | OPTIMAL 4250 NC-K |
| Year | 1993 |
| Condition | Used |
| Stock Number | 1105-02617 |
| Controls | NC |
| Country of origin | Germany |
| Delivery time | immediately |
| Delivery terms | ex Showroom |
| Grinding length | 450 mm |
| Grinding width | 250 mm |
| Workpiece height | 375 mm |
| Table length | 800 mm |
| Table width | 250 mm |
| Max. workpiece weight | 400 kg |
| Automatic cross feed adjustable | 3-50 mm/Hub |
| Vertical adjustment, 1 graduation | 0.001 - 0.06 mm |
| Grinding wheel diameter | 300 mm |
| Grinding wheel width | 50 mm |
| Connected load frequency | 380 V |
| Grinding wheel motor | 3.7 / 4.7 kW |
| Total power requirement | 9 kW |
| Weight of the machine ca. | 2.6 t |
| Dimensions of the machine ca. | 2800 X 2500 2300 mm |
