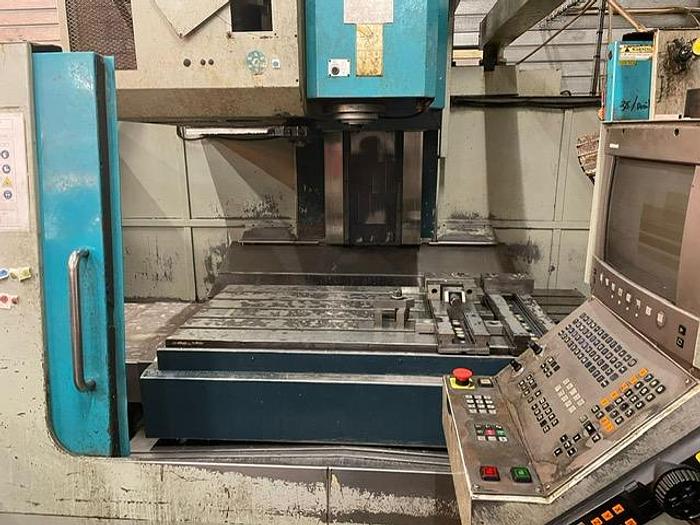

1999 FEELER FV 1500

Machine-Details

Stock-No. 1105-03850

Type of machine Machining Center - Vertical

Make FEELER

Type FV 1500

Year of manufacture 1999

Type of control CNC

Storage location FRANKREICH

Country of origin taiwan

Delivery time immediately

Freight basis EX WORK

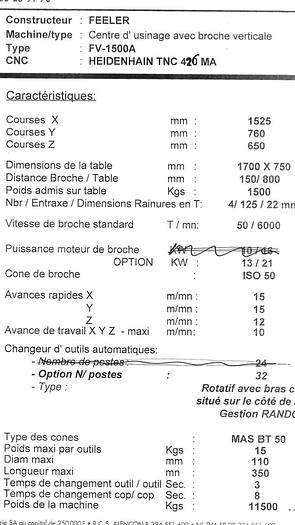

Technical details

x-travel 1500 mm

y-travel 750 mm

z-travel 750 mm

tool taper BT 50

spindle drive 15-21 kW

spindle turning speed range 6000 U/min

tool change unit 32-fach BT 50

tool changing time 4 sec

table-size 1700 x 750 mm

table load capacity - central/maximum 1500 kp

rapid travel x/y/z 24 m/min

feeds x/y/z -stepless 20000 mm/min

total power requirement 40 kVA

weight of the machine ca. 8 t

Additional information

CNC control HEIDENHAIN TNC 426

A.T.C. for 32 tools BT 50

COOLING TROUGHT THE SPINDEL 20 BARS

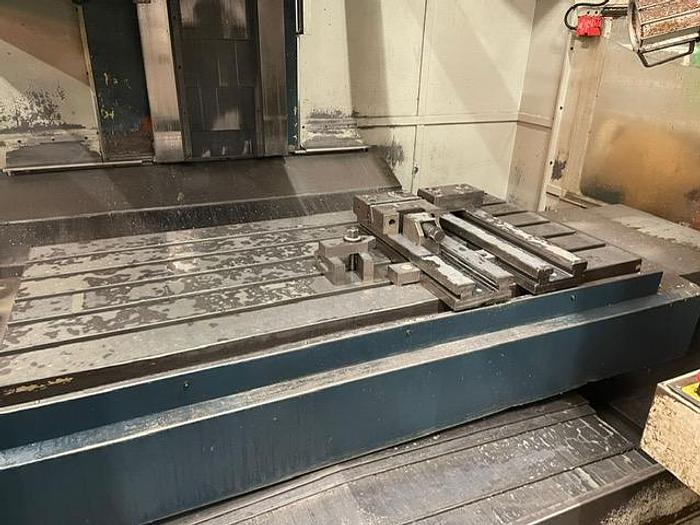

TABLE 1700 X 750

15 KW 6000 RPM
