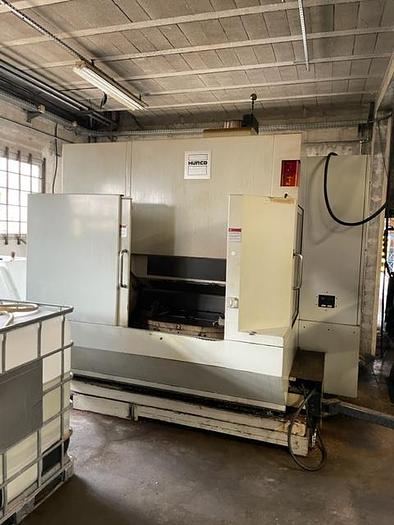

1996 HURCO PEGASUS VSX 320

Technical details

x-travel760 mmy-travel510 mmz-travel510 mmtotal power requirement15 kWweight of the machine ca.4,8 t

Additional information

Working range:

Longitudinal stroke X Axis 760 mm

Vertical stroke Z Axis 510 mm

Cross stroke Y Axis 560 mm

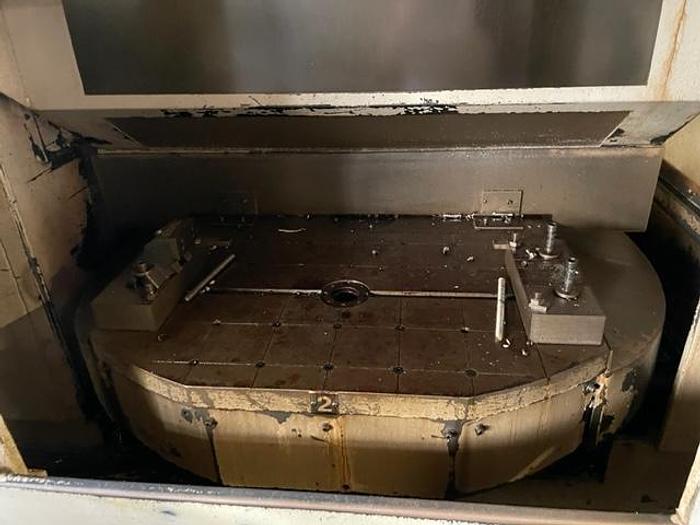

2 PALETTES

Table size 800 x 500 mm

Max. weight of workpiece 500 kg

Mounting height under spindle 152 - 660 mm

Distance between middle of spindle and machine body 520 mm

Distance from middle of table to machine column 265 - 775 mm

Spindle taper SK 40

Spindle speeds 30 - 8,000 rpm

Feeds / quick feeds, max. 3 m / 10 m/min

Boring / milling capacity in steel 40 / 165 cm³

AC main drive, approx. 5.5 / 7.5 kW

Total electrical load, approx. 15 kW - 400 V - 50 Hz

Weight, approx. 4,800 kg

Outside dimensions, L x W x H 3,260 x 2,800 x 2,700 mm

Accessories / Special Features

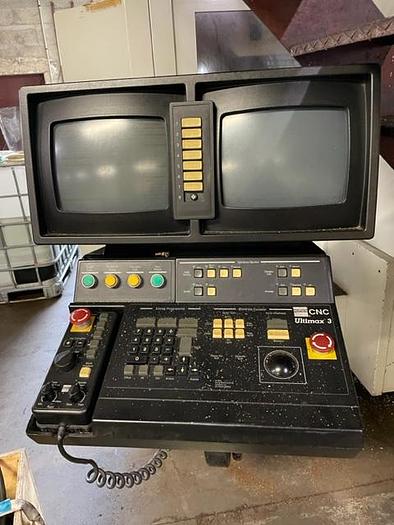

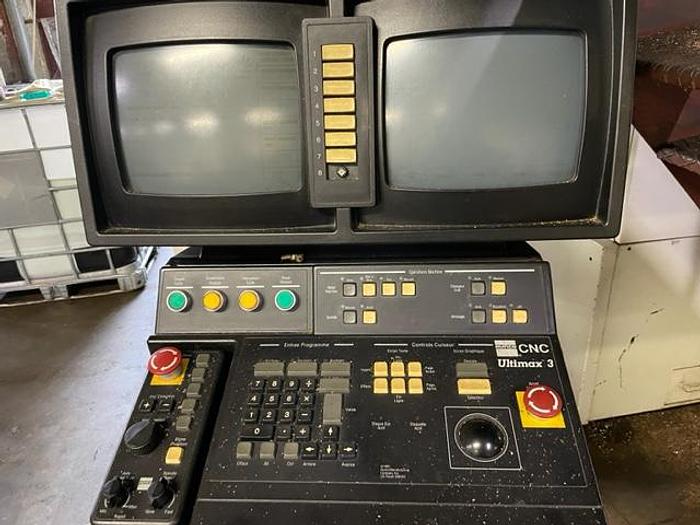

* Original HURCO Control, Model ULTIMAX 3, with 2 monitors. One of them is

for graphics and the other is only for texts. With easy operating instructions

for writing working programs, with subprograms.

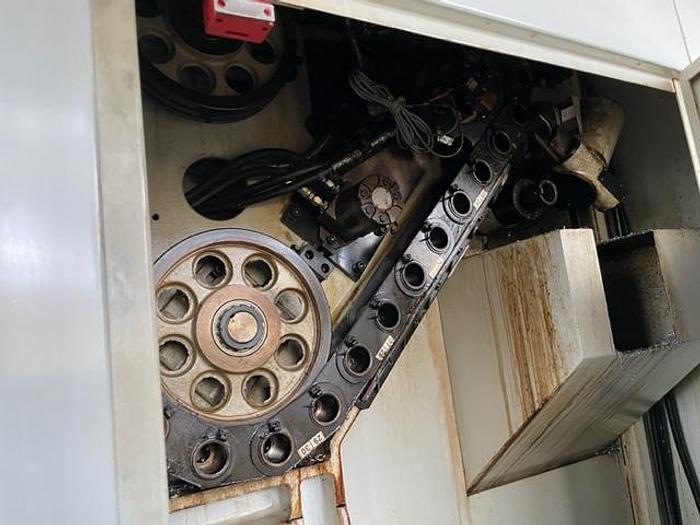

* Automatic tool changer with 20 tool positions. Max. tool Ø 100/150 x 300

mm long, max. weight approx. 7 kg. Tool changing time approx. 6 seconds.

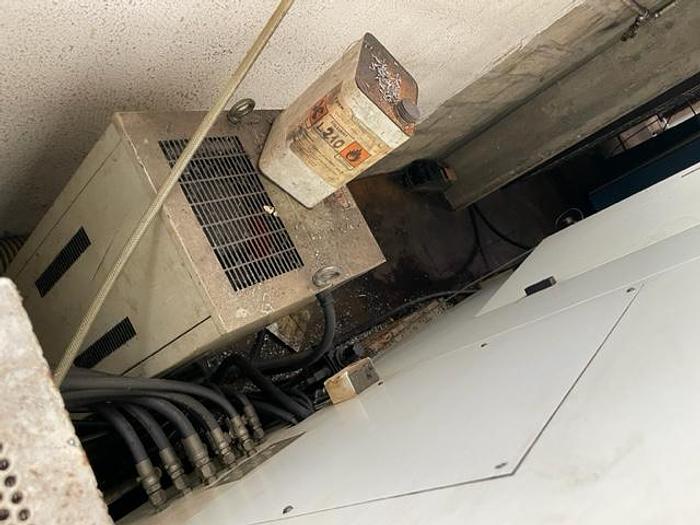

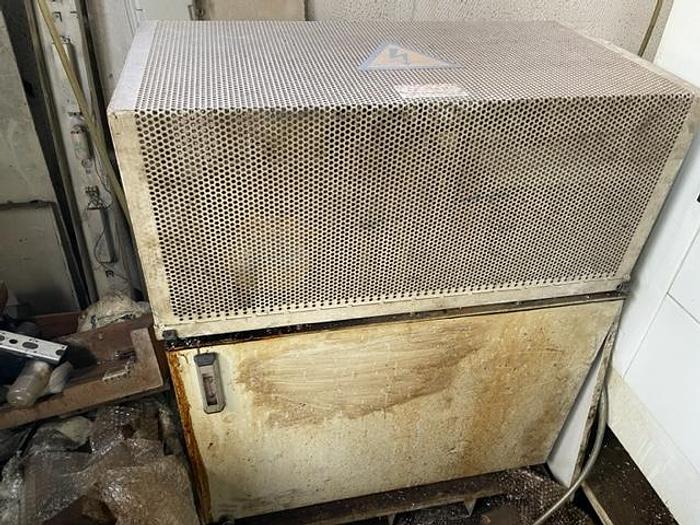

* Separate coolant aggregate for spindle lubrication.

* Coolant collections in base of machine, including coolant pump.

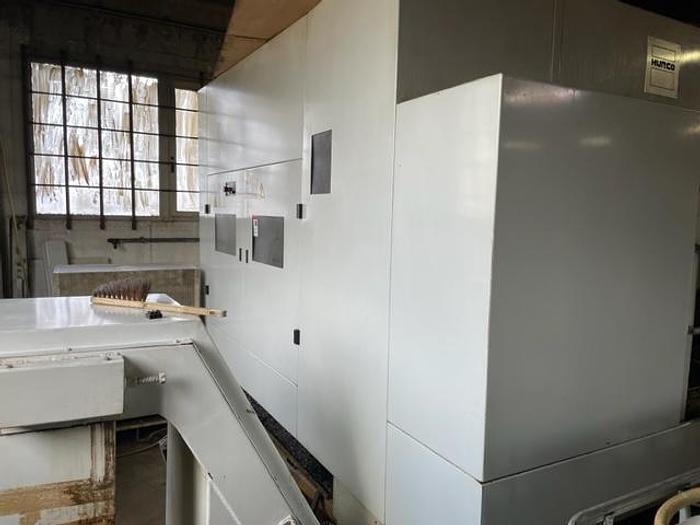

* Completely covered working area with 2 safety doors.
