2000 OKUMA MA-40HA

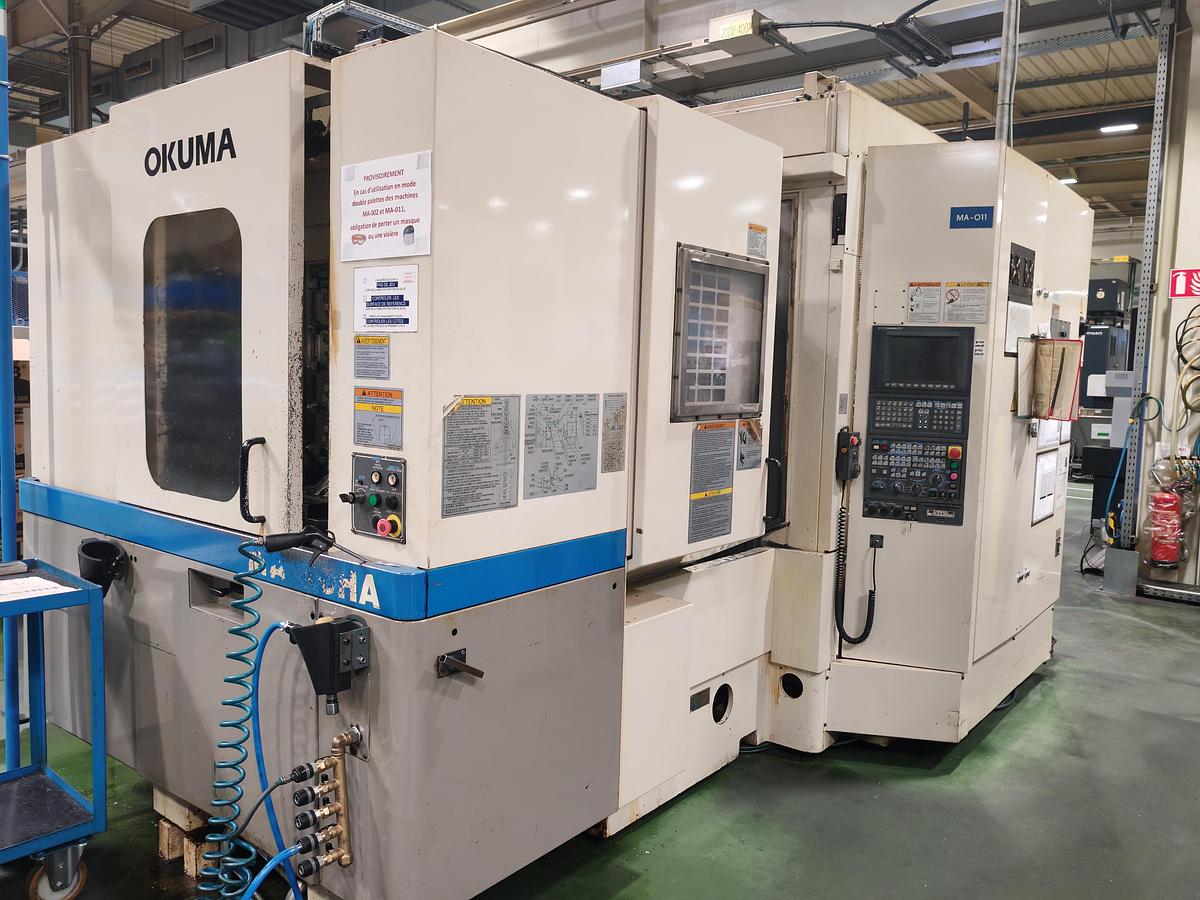

OKUMA MA-40HA Horizontal Machining Center

​Machine Capabilities

• ​Machine Type: Twin Pallet Horizontal Machining Center
• ​Control Unit: OSP-U100M
• ​X-Axis Travel: 560 mm
• ​Y-Axis Travel: 610 mm
• ​Z-Axis Travel: 560 mm
• ​Rapid Traverse Rate: 40 m/min
• ​Cutting Feedrate: 1 – 30,000 mm/min

​Pallet & Workpiece

• ​Pallet Dimensions: 400 mm x 400 mm
• ​Number of Pallets: 2
• ​Pallet Indexing: 1 Degree (360 positions)
• ​Maximum Workpiece Weight: 400 kg

​Spindle & Tooling

• ​Spindle Taper: BT40
• ​Spindle Speed: 12,000 RPM
• ​Spindle Motor Power: 22 kW (30 HP)
• ​Tool Storage Capacity: 60 Tools (ATC)
• ​Max Tool Diameter: 100 mm
• ​Max Tool Weight: 10 kg

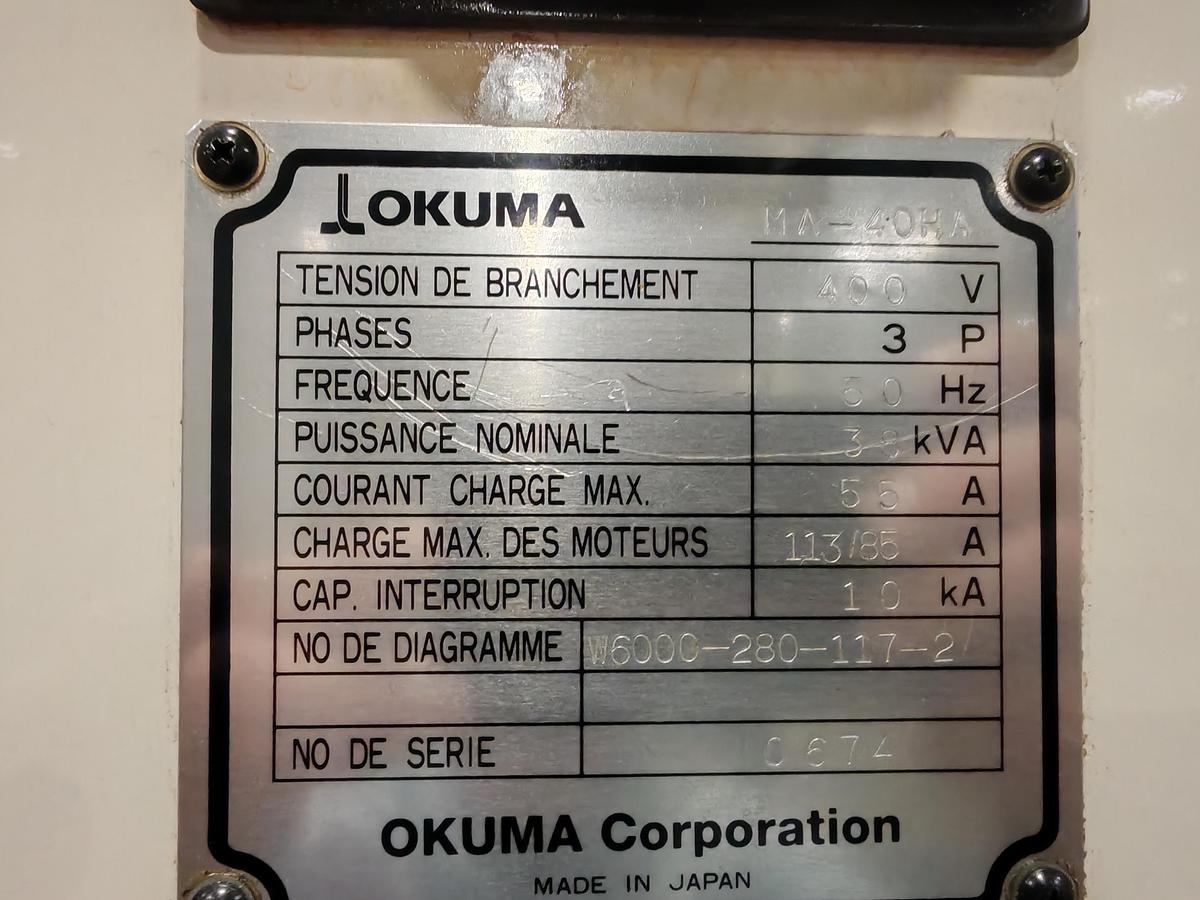

​Electrical Data (Verified from Nameplate)

• ​Connection Voltage: 400 V
• ​Phase: 3 Phase
• ​Frequency: 50 Hz
• ​Rated Power Capacity: 38 kVA
• ​Full Load Current: 55 A
• ​Max. Motor Load: 113/85 A
• ​Interrupting Capacity: 10 kA
• ​Wiring Diagram Number: W6000-280-117-2
• ​Serial Number: 0674

​Physical Dimensions

• ​Machine Height: 2,750 mm
• ​Floor Space Required: 2,500 mm x 4,200 mm
• ​Machine Weight: 12,000 kg
