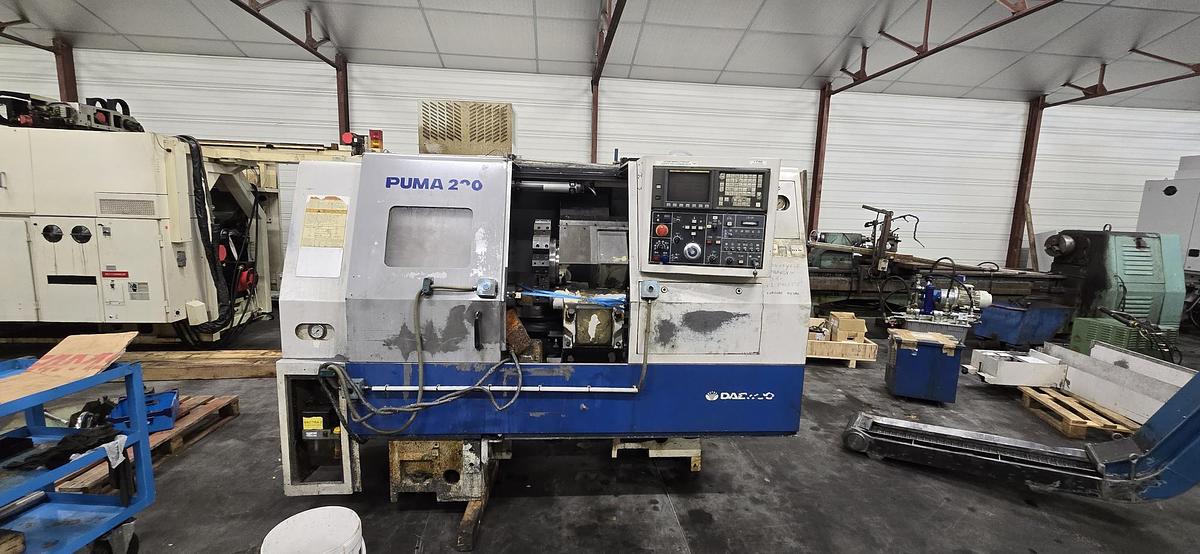

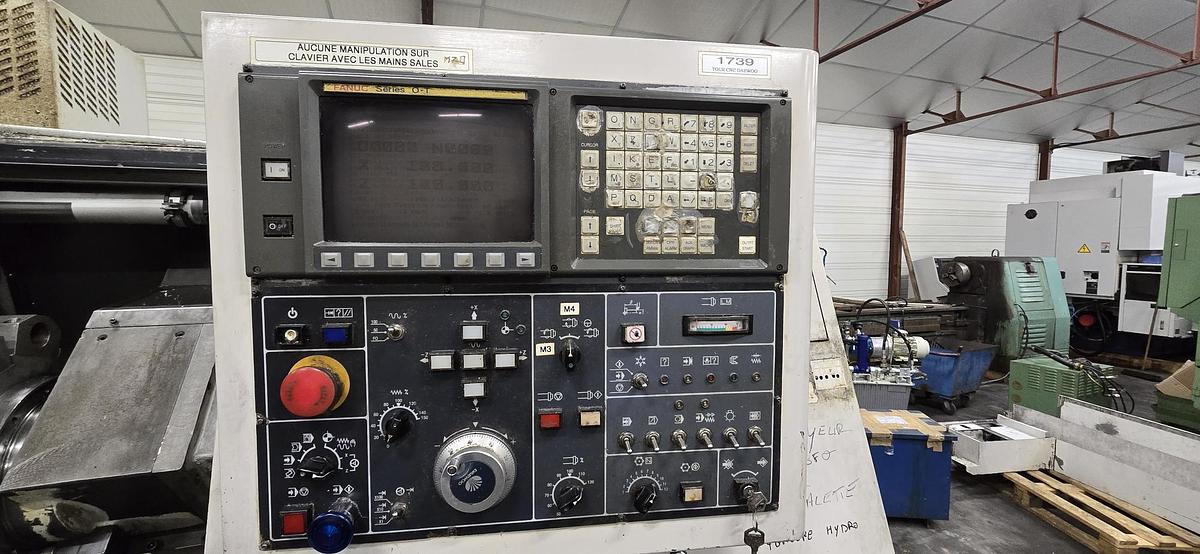

DOOSAN PUMA 200A

Technical Specifications: Doosan Puma 200A (1997)

Capacities

• Swing over bed: 510 mm
• Swing over saddle: 330 mm
• Recommended machining diameter: 170 mm
• Max. turning diameter: 350 mm
• Max. turning length: 425 mm

Travels

• X-axis travel: 242 mm (67+175)
• Z-axis travel: 440 mm

Spindle

• Speed range: 6,000 rpm
• Spindle nose type: ASA A2#5
• Spindle through hole diameter: 53 mm
• Drawtube I.D.: 46 mm
• Spindle bearing inner diameter: 90 mm

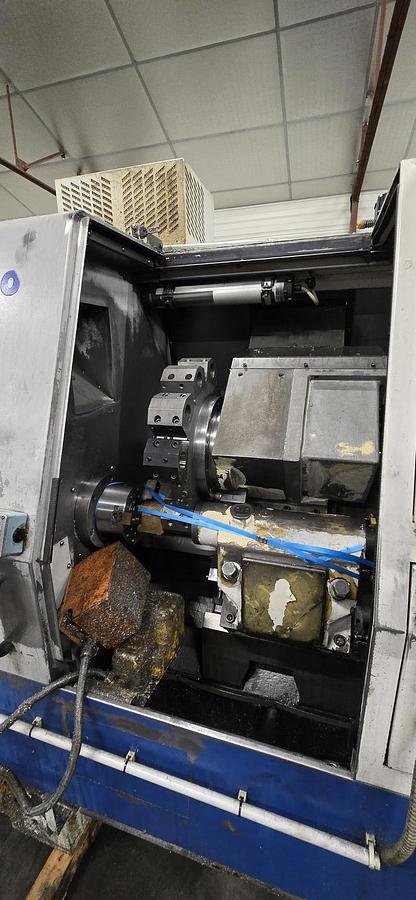

Turret

• Number of tool stations (VDI type): 12
• Turning tool dimensions: 25 × 25 mm
• Boring bar diameter: 40 mm
• Turret indexing time: 0.65 sec

Feed Rates

• Rapid traverse: X: 20 m/min, Z: 25 m/min

Tailstock

• Tailstock quill diameter: 75 mm
• Tailstock taper: MT#4
• Tailstock quill travel: 80 mm

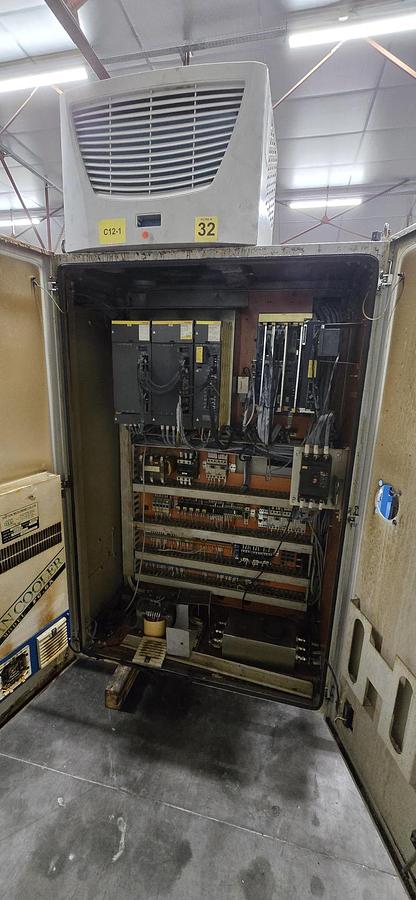

Motors

• Spindle drive motor: 11 kW
• Feed motor: X: 1.4 kW, Z: 2.8 kW

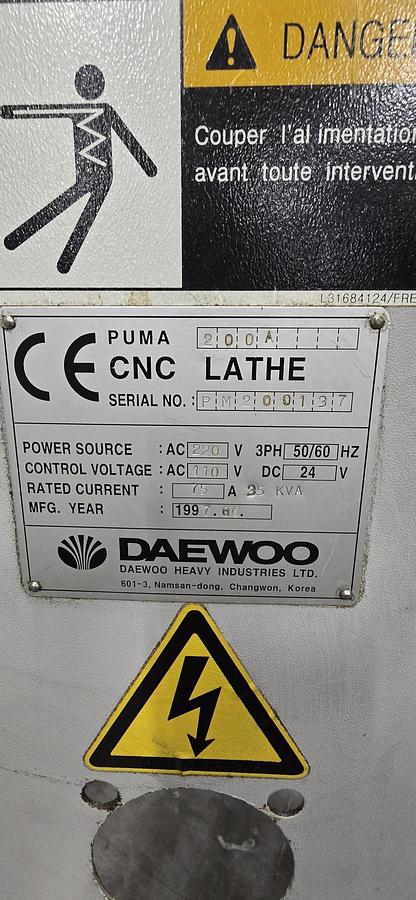

General Information

• Power supply: 35 kVA
• Coolant tank capacity: 100 L
• Floor space: 2,660 × 1,635 mm
• Machine weight: 3,940 kg
