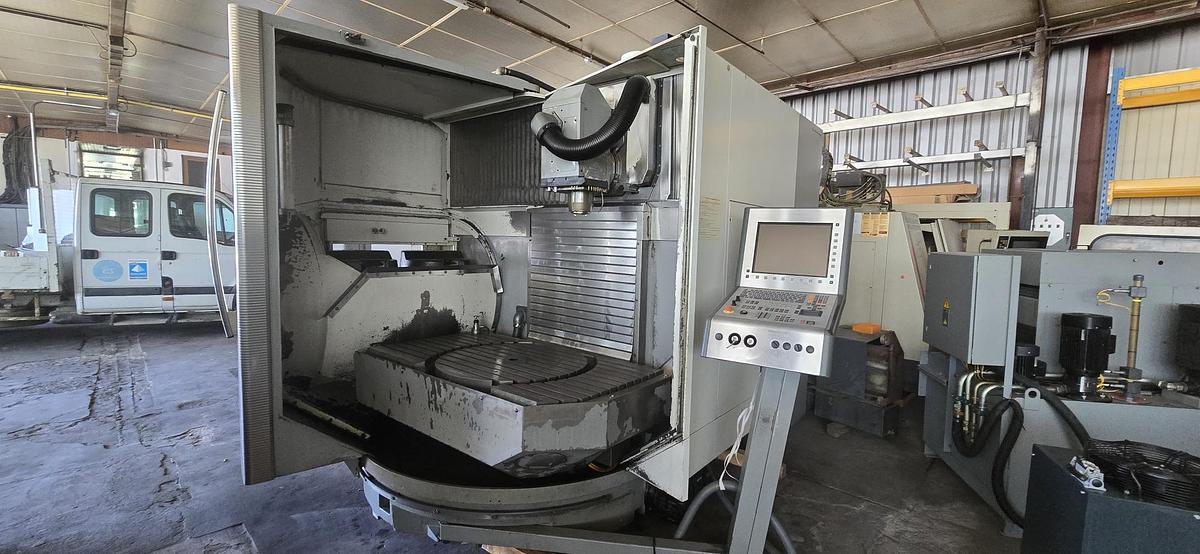

Number of axes : 5

MILLING SPINDLE

- Tool holder type : ISO40

- Spindle power : 15 [kW]

- Spindle speeds : 20 - 12.000 [rpm]

LINEAR AXES

- Travels on X/Y/Z axes : 1.060 x 710 x 710 [mm]

- Rapid traverses rates (X/Y/Z) : 30.000 [mm/min]

- Cutting feed rates (X/Y/Z) : 20 - 15.000 [mm/min]

A ROTARY AXIS : HEAD

- Travel : 90 [°] (+/-)

- Indexing precision : 0,001 [°]

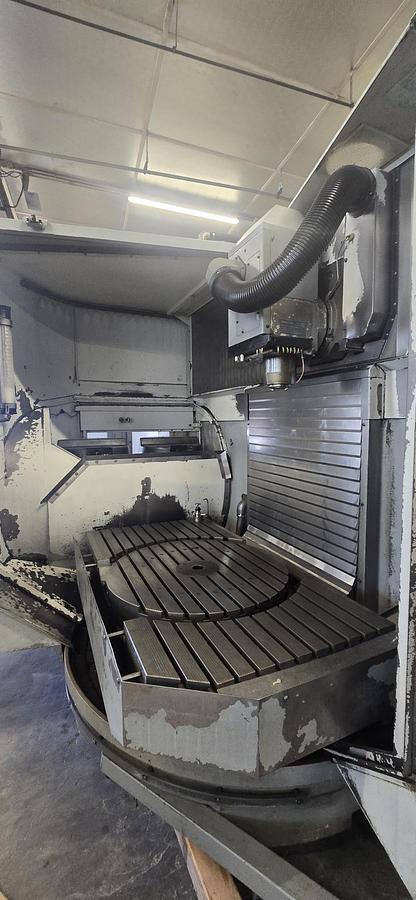

B ROTARY AXIS : ROTARY TABLE Ø 695 [mm]

- Travel : 360 [°] (+/-)

- Indexing precision : 0,001 [°]

TOOL CHANGER

- Auto. Tool Changer type : Umbrella

- Tool magazine capacity : 32

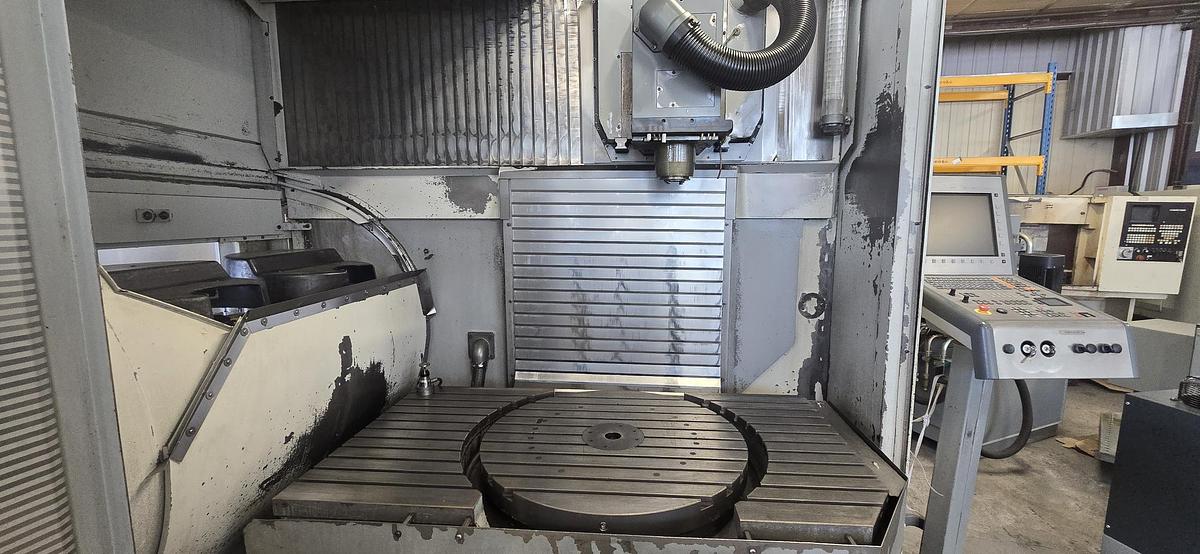

TABLE

- Table dimensions : 1500 x 795 [mm]

- Maximum weight upon table : 900 [kg]

- Distance table / spindle nose (min./max.) : 78 - 788 [mm]

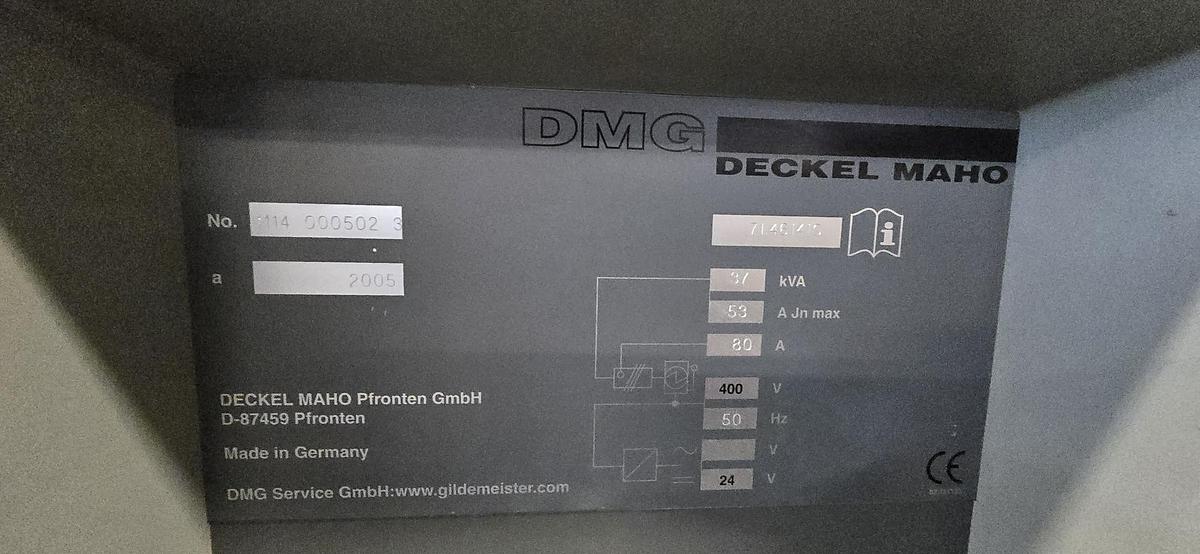

POWER SUPPLY

- Supply voltage : 400 [V]

- Total installed power : 54 [kVA]

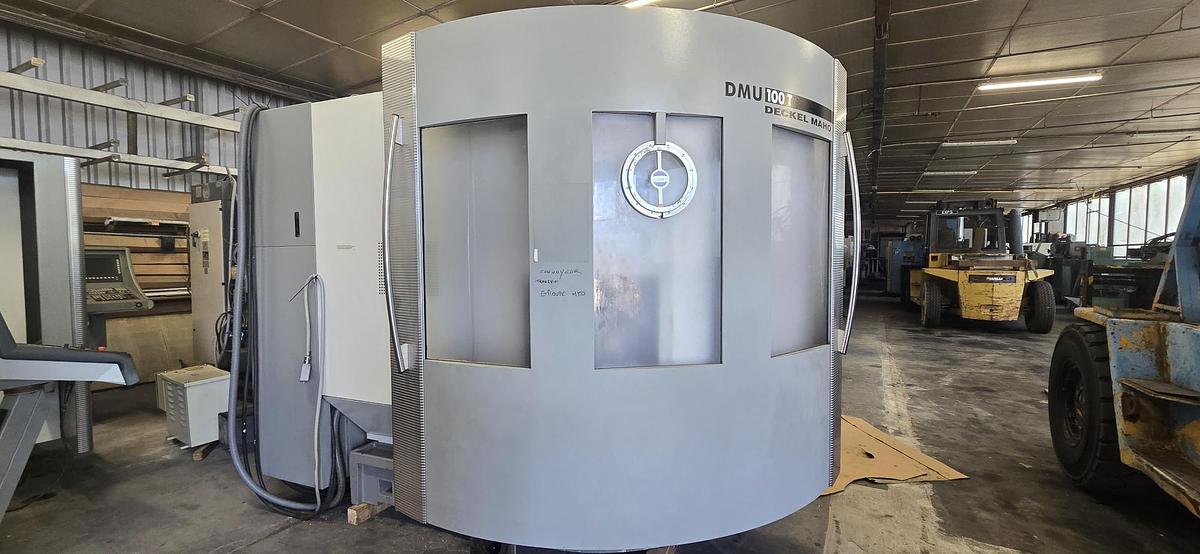

WEIGHT & DIMENSIONS

- Machine floor space : 3.448 x 3.838 [mm]

- Machine height : 2.487 [mm]

- Machine weight : 9.700 [kg]

Equipment

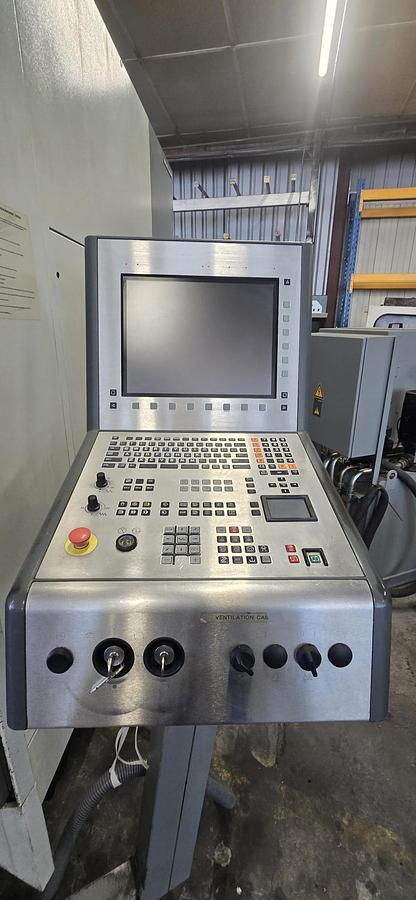

- CNC : Heidenhain TNC 530

- Interface : RS232 / RJ45

- Electronic handwheel : HEIDENHAIN HR 410

- Linear scales

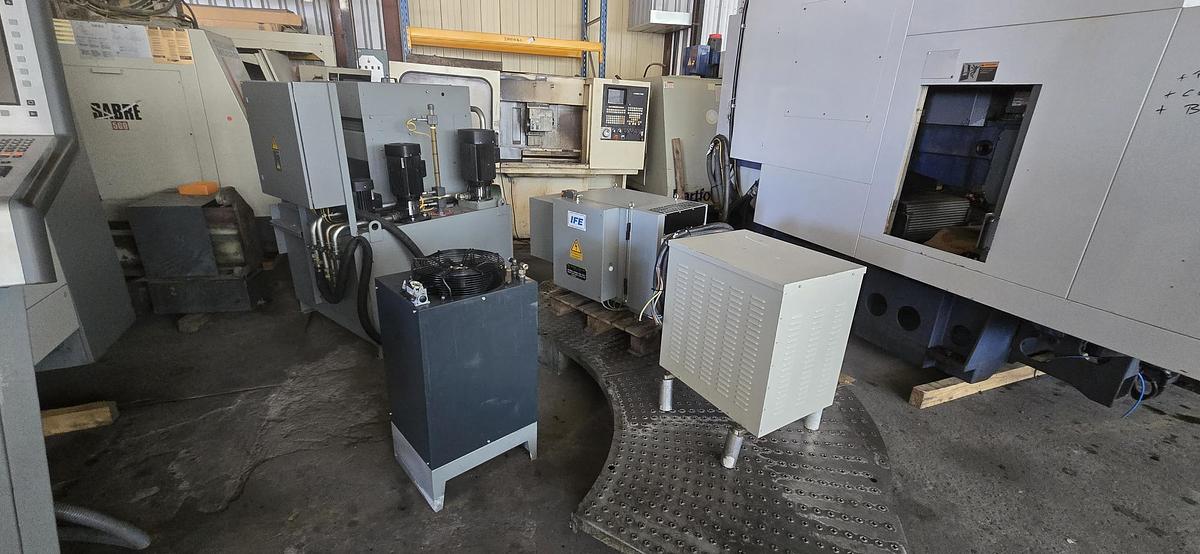

- COOLANT TANK : 250 [l]

- Electric transformer : 400 / 400 [V]
