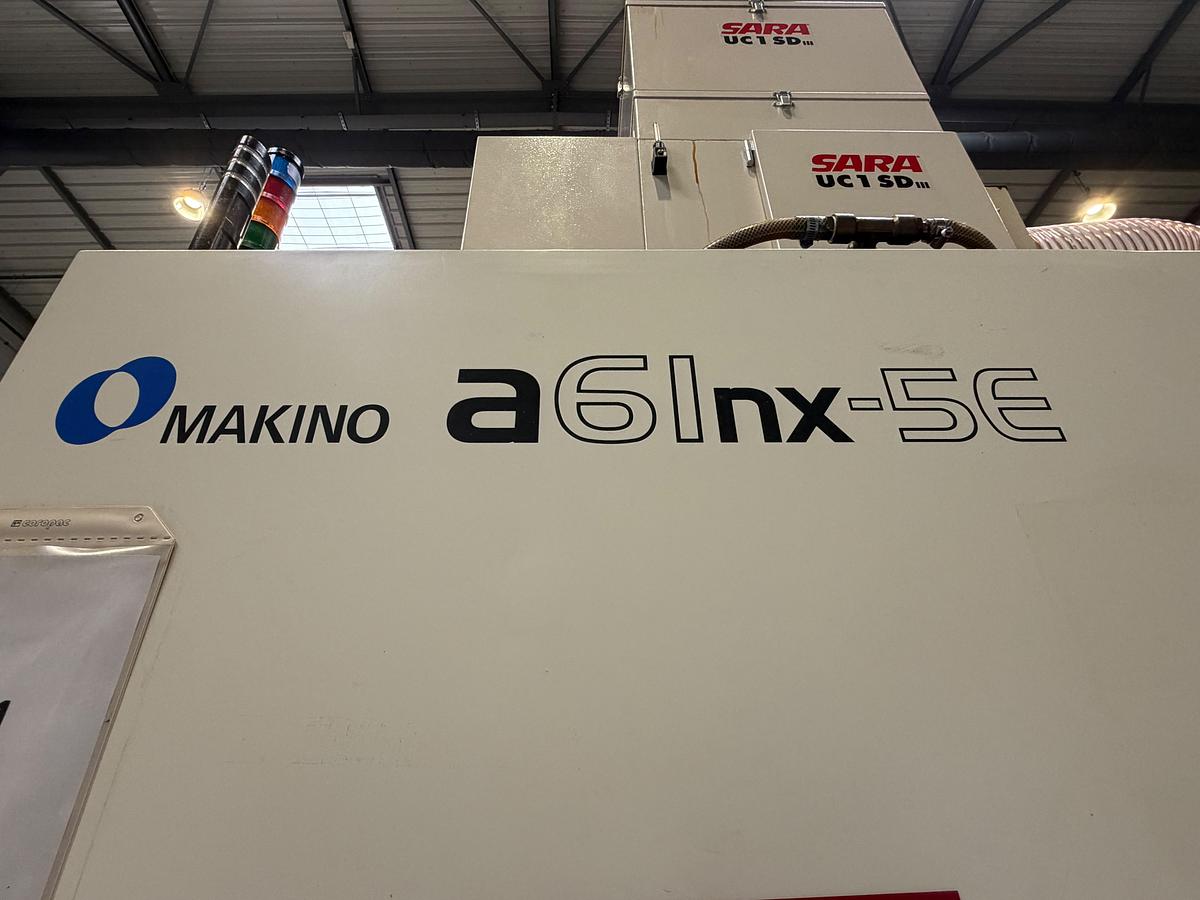

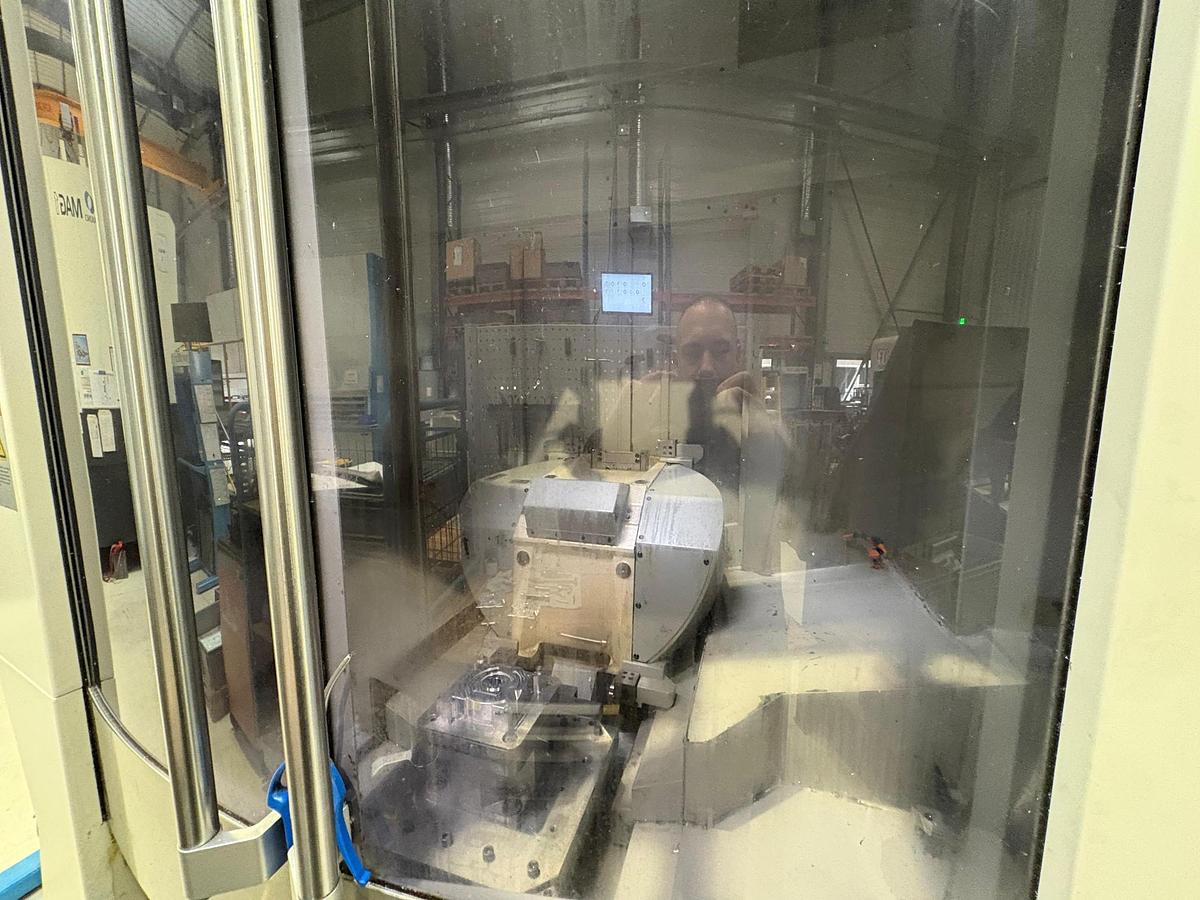

Makino a61nx-5E (Year: 2013&14)

OFFER N°1: Makino a61nx-5E (Year: 2013)

Technical Specifications & High-Productivity Configuration

• Year of Manufacture: 2013

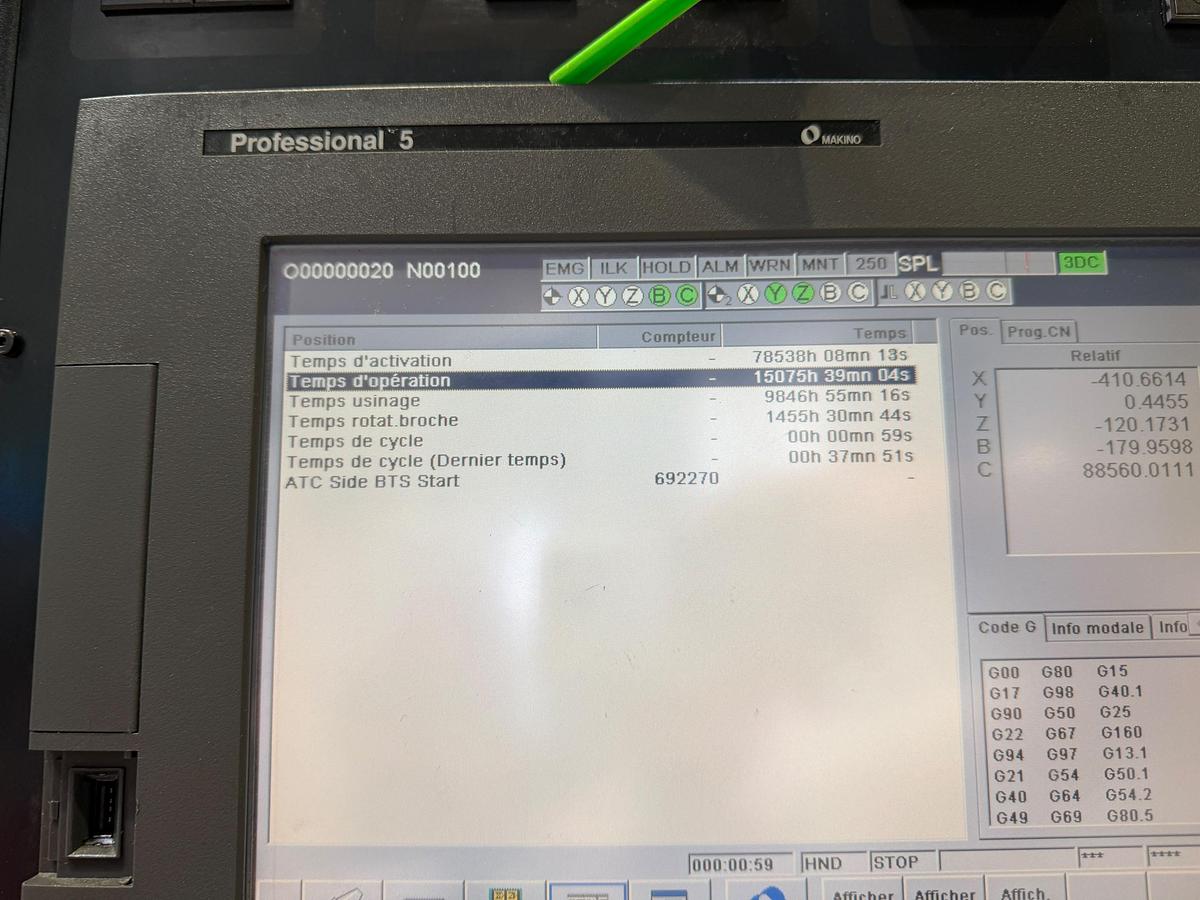

• Machine Status: 12,000 spindle/operating hours

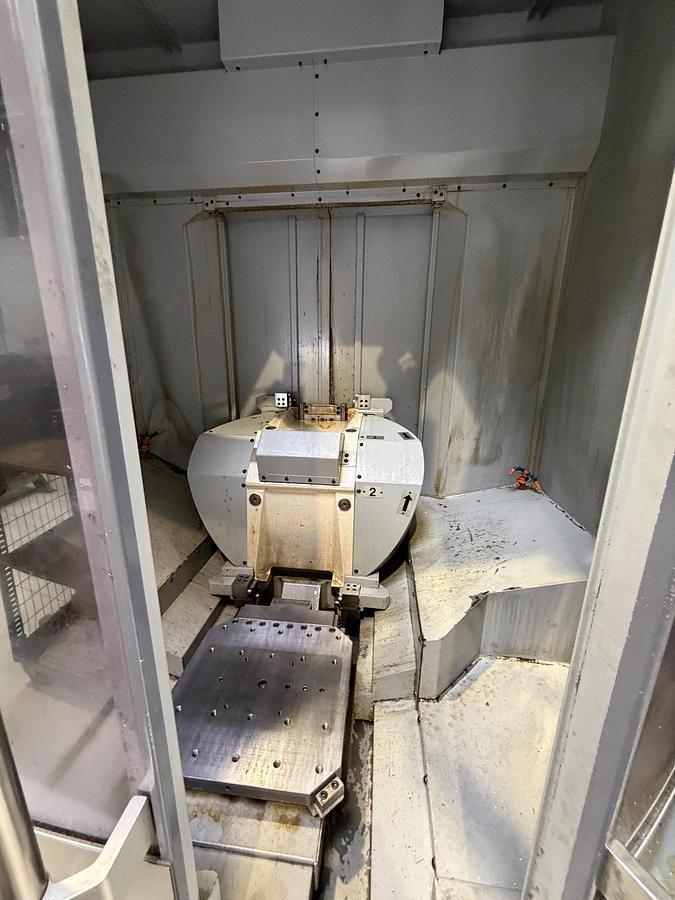

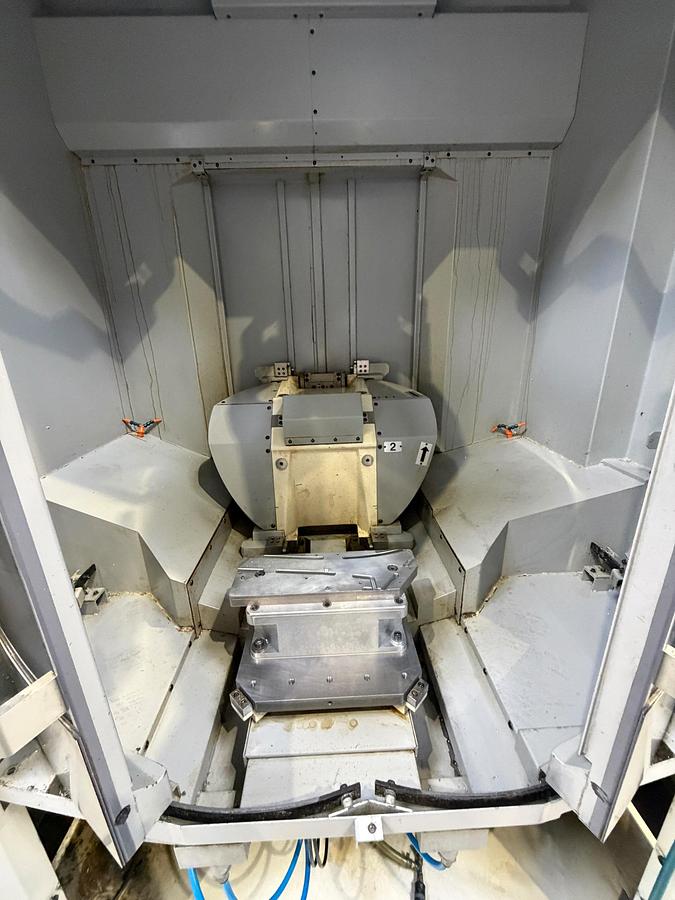

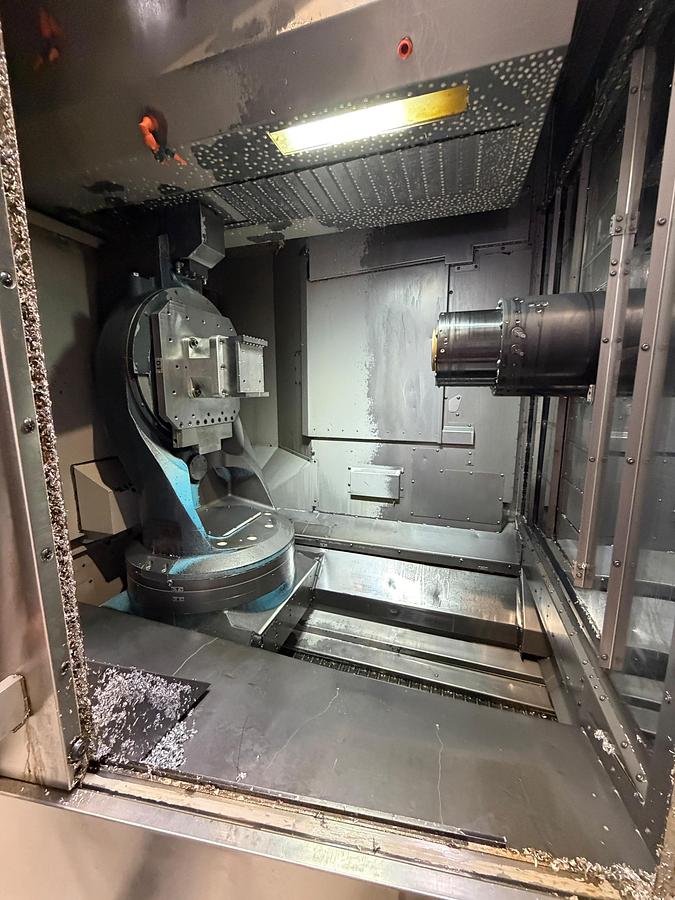

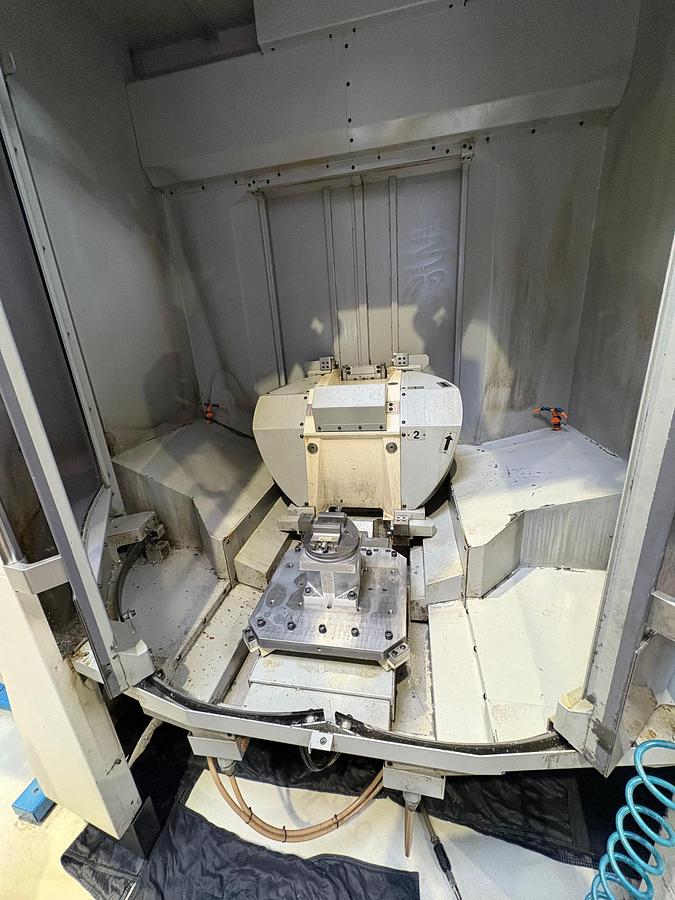

• Kinematics: Simultaneous 5-axis (Direct Drive B-axis tilting table + C-axis rotary table)
• Axis Travel (X / Y / Z): 730 mm / 730 mm / 680 mm
• Pallet Size: 400 x 400 mm (Max. payload: 150 kg)

Motor Spindle & Thermal Stabilization

• Max. Spindle Speed: 24,000 rpm
• Spindle Taper: HSK-A63
• Active Cooling: Dedicated spindle oil chiller (Core Cooling) + Specific oil cooler for the torque motors and axis drives.

Coolant System & Chip Management (High-Flow)

• Coolant Through Spindle (CTS): 80 bar (1,160 PSI) (Ideal for deep-hole drilling and massive chip evacuation in aluminum/titanium).

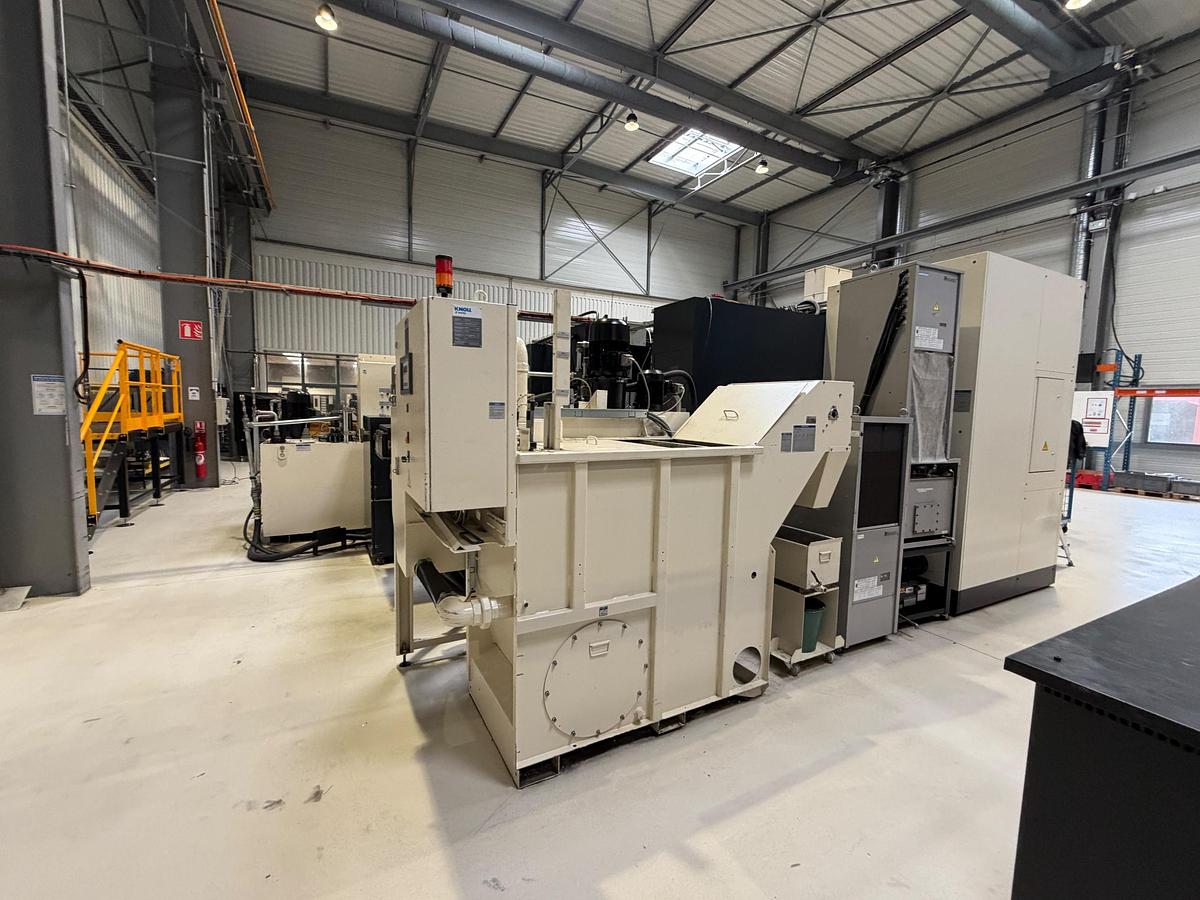

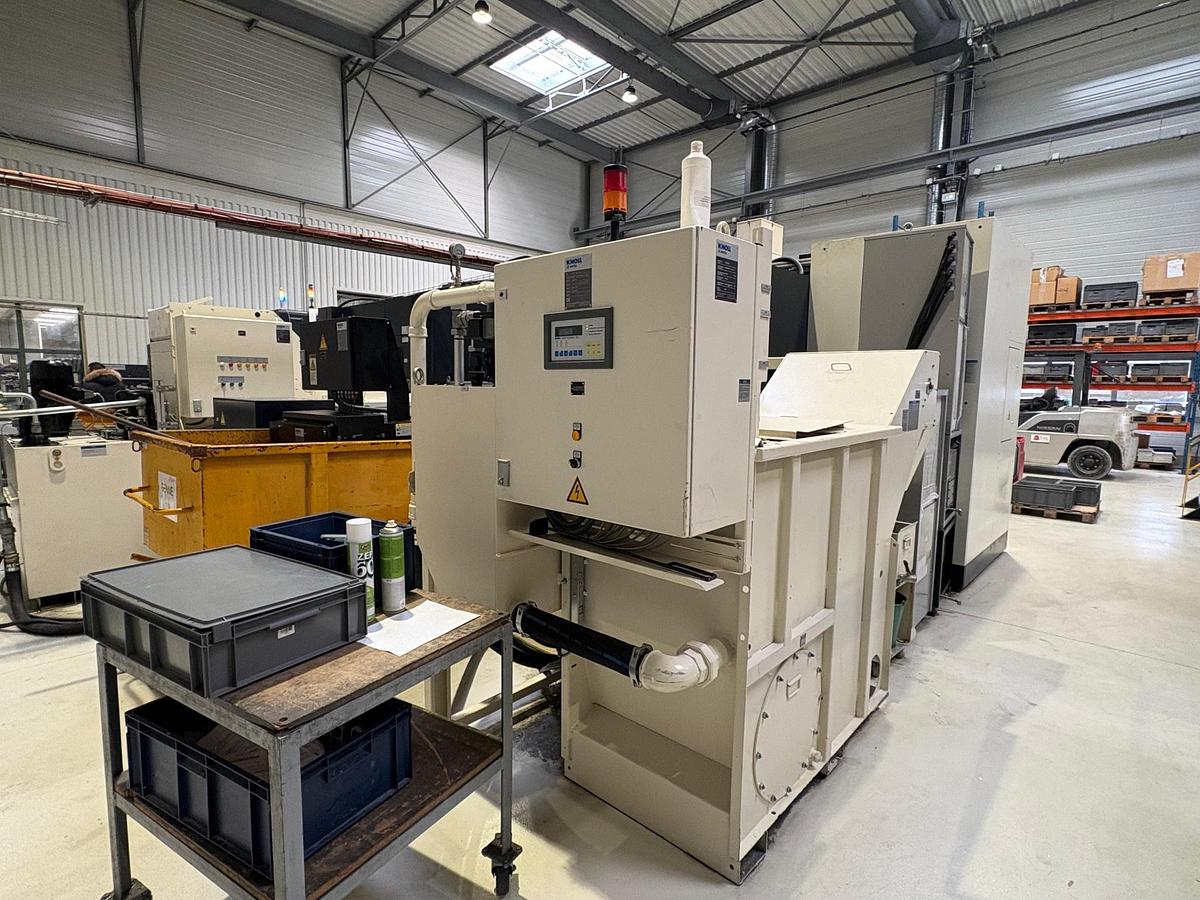

• Filtration Unit: High-capacity 1,000-Liter KNOLL coolant tank with integrated chip conveyor and fine filtration system.

Tool Changer & Probing System

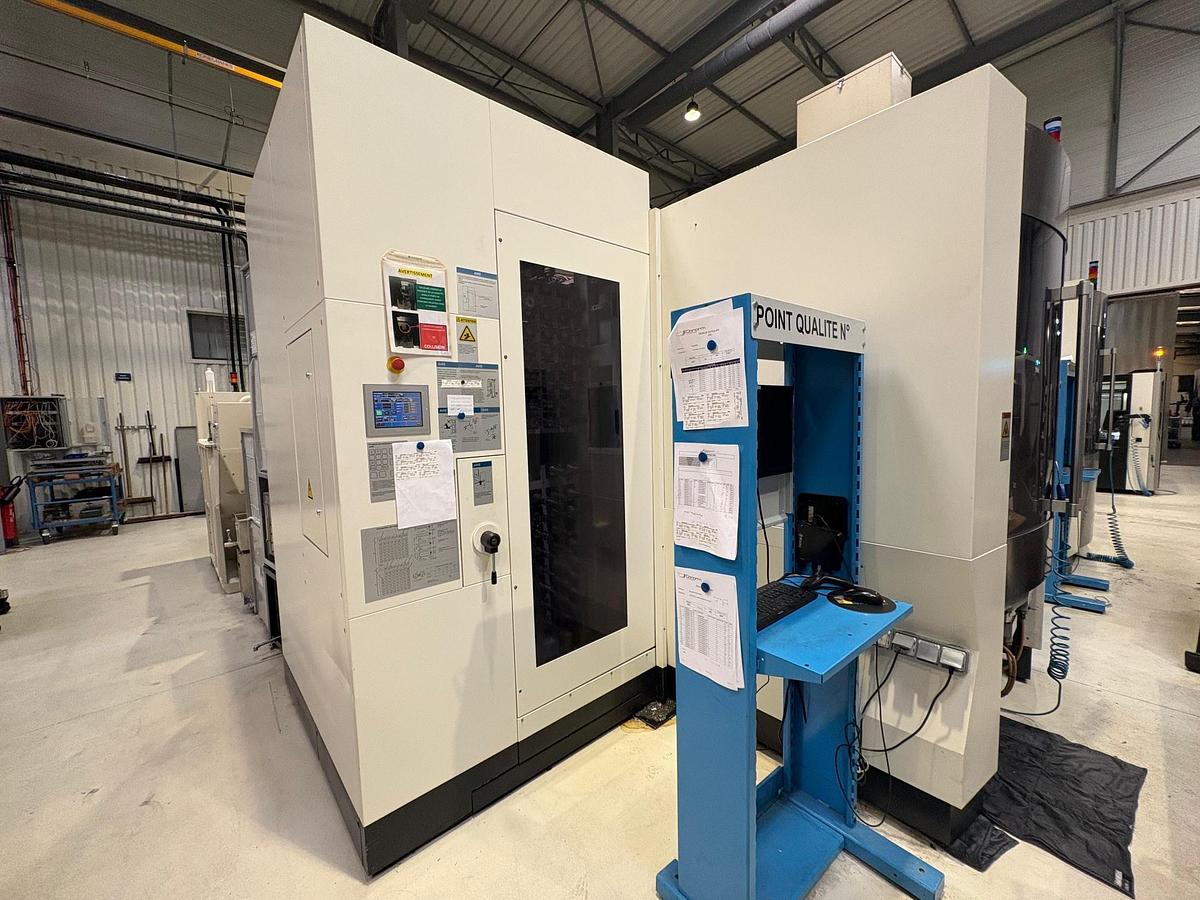

• Automatic Tool Changer (ATC) Capacity: 133 stations (XL configuration for extended unmanned operations or complex part families).
• Part Probing: MARPOSS radio/infrared workpiece touch probe for part setup and in-process measurement.

OFFER N°2: Makino a61nx-5E (Year: 2014)

Technical Specifications & Standard Aerospace Configuration

• Year of Manufacture: 2014
• Machine Status: 15,000 spindle/operating hours
• Kinematics: Continuous 5-axis (Optimized for complex 3D profiles and monolithic aerospace structural parts)
• Axis Travel (X / Y / Z): 730 mm / 730 mm / 680 mm
• Pallet Size: 400 x 400 mm

Motor Spindle & Thermal Stabilization

• Max. Spindle Speed: 24,000 rpm (Optimized for HSM - High-Speed Machining)
• Spindle Taper: HSK-A63
• Active Cooling: Specific torque oil cooler (for B/C axes and linear/ball screw drives).

Coolant System & Chip Management

• Coolant Through Spindle (CTS): 80 bar (1,160 PSI) (High pressure for optimal chip breaking).
• Filtration Unit: High-capacity 1,000-Liter KNOLL coolant tank with advanced filtration and sediment management.

Tool Changer & Probing System

• Automatic Tool Changer (ATC) Capacity: 60 stations (Fast and compact standard configuration).
• Part Probing: MARPOSS automatic workpiece touch probe for work coordinate system (WCS) setting and cycle inspection.
