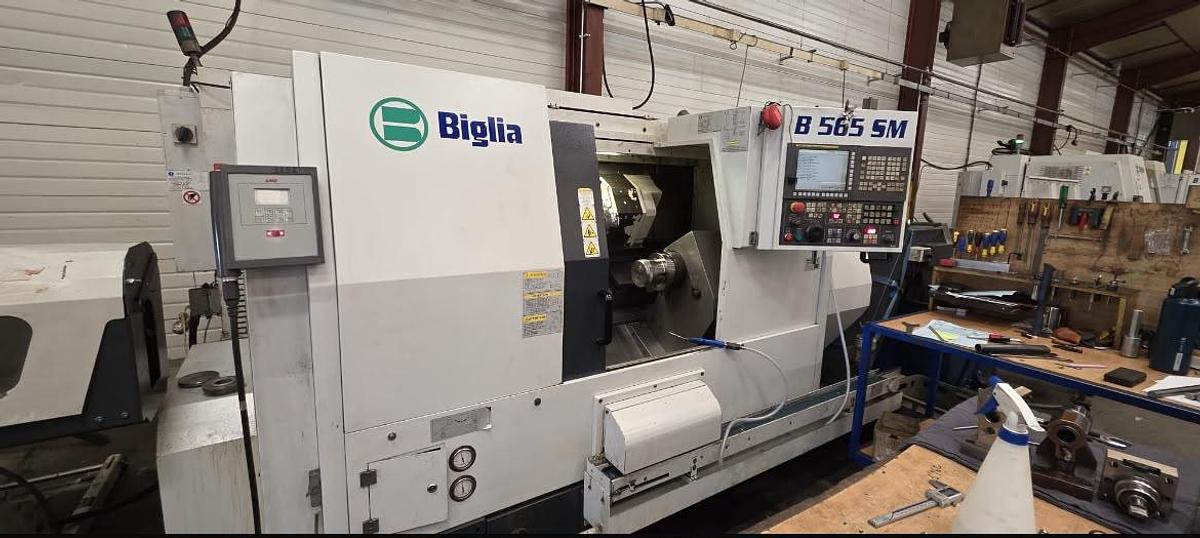

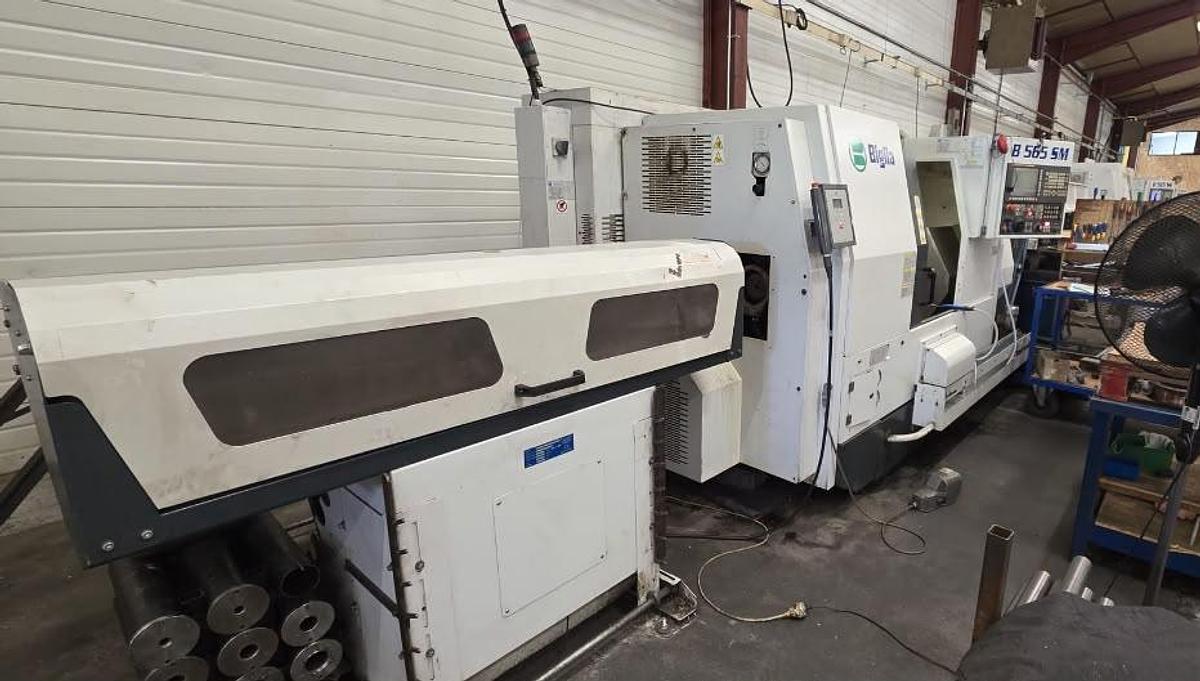

BIGLIA B565 SM / FROM 2014

BIGLIA B565 SM (2014)

General Machine Overview

• Machine Type: CNC Twin-Spindle Turning Center

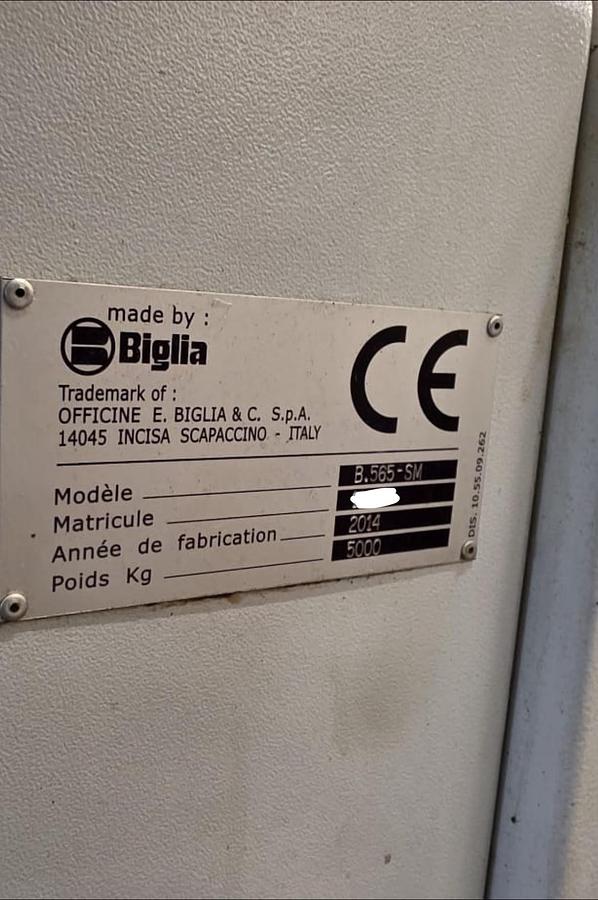

• Year of Manufacture: 2014

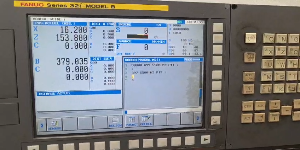

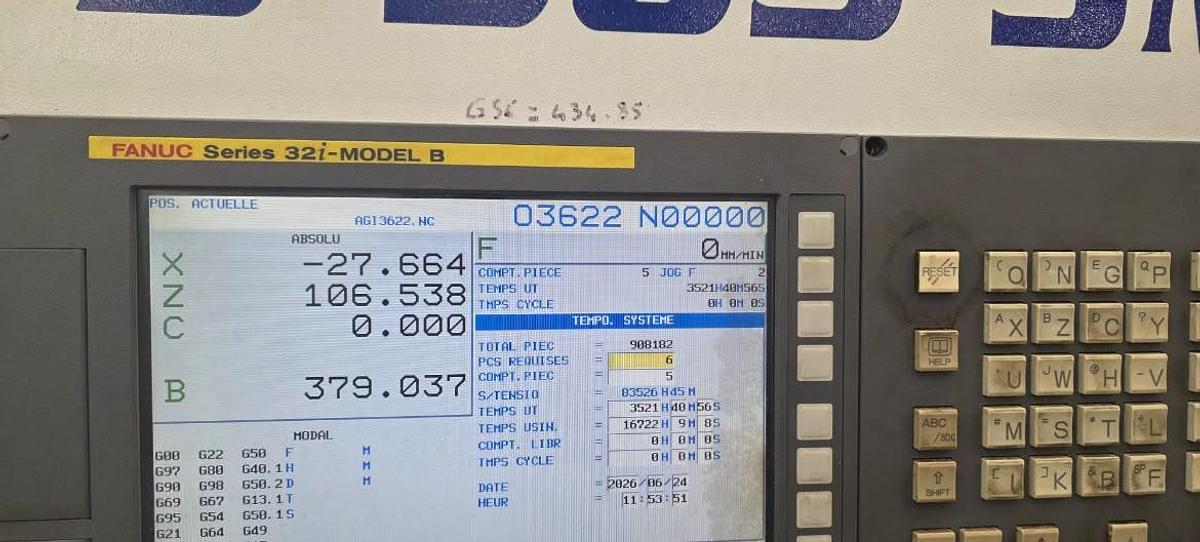

• CNC Control Unit: GE Fanuc Series 32i MODEL B
• Configuration: S (Sub-Spindle) + M (Live Tooling / Driven Tools + C-Axis)

Capacity & Working Range

• Max. Turning Diameter: 290 mm
• Max. Turning Length: 560 mm
• Max. Bar Capacity (Main Spindle): Ø 65 mm
• Max. Swing Diameter over Bed: 580 mm

Main Spindle

• Spindle Speed Range: 30 – 4,000 rpm
• Spindle Nose: ASA 6”
• Spindle Bore: 76 mm
• Chuck Diameter: 210 / 250 mm
• Spindle Motor Power (Max/Cont.): 26 kW / 15 kW
• C-Axis Resolution: 0.001°

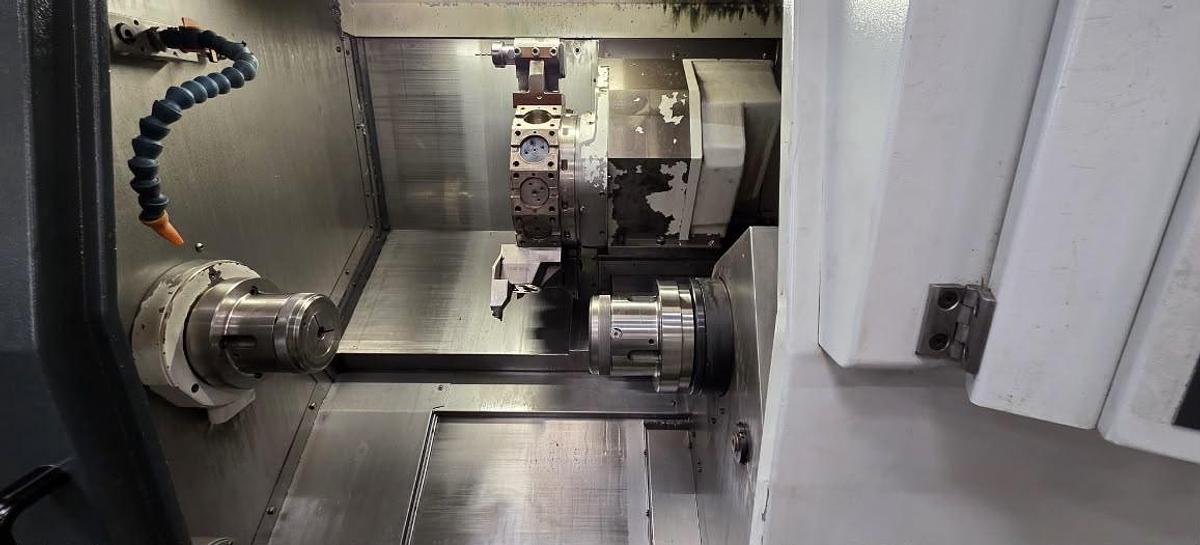

Sub-Spindle (S)

• Spindle Speed Range: 30 – 5,000 rpm
• Spindle Nose: ASA 5”
• Chuck Diameter: 165 mm
• Sub-Spindle Motor Power: 11 kW
• Sub-Spindle Stroke (B-Axis): ~560 mm

Turret & Live Tooling (M)

• Number of Tool Stations: 12 positions (All can be motorized)
• Turret Indexing Time (1 position): 0.15 sec
• Live Tools Speed Range: 30 – 4,000 rpm (or 6,000 rpm optional)
• Live Tools Motor Power: 5.5 kW
• Tool Shank Size (Square / Boring Bar): 25 x 25 mm / Ø 40 mm

Axis Climbs & Rapid Traverses

• X-Axis Travel: 220 mm
• Z-Axis Travel: 560 mm
• Rapid Traverse (X / Z / B): 20 / 24 / 24 m/min
