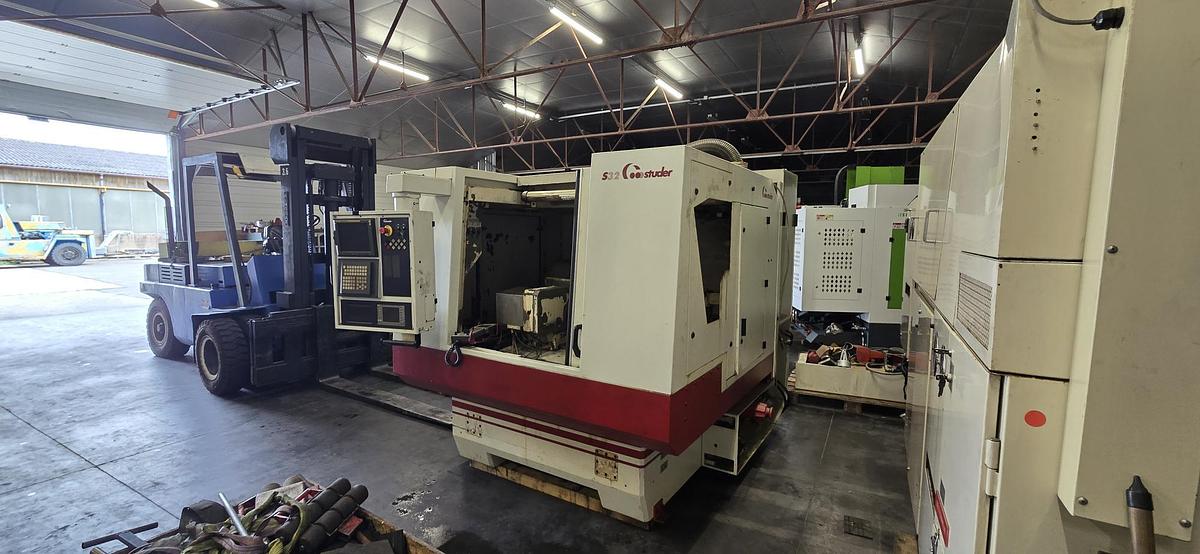

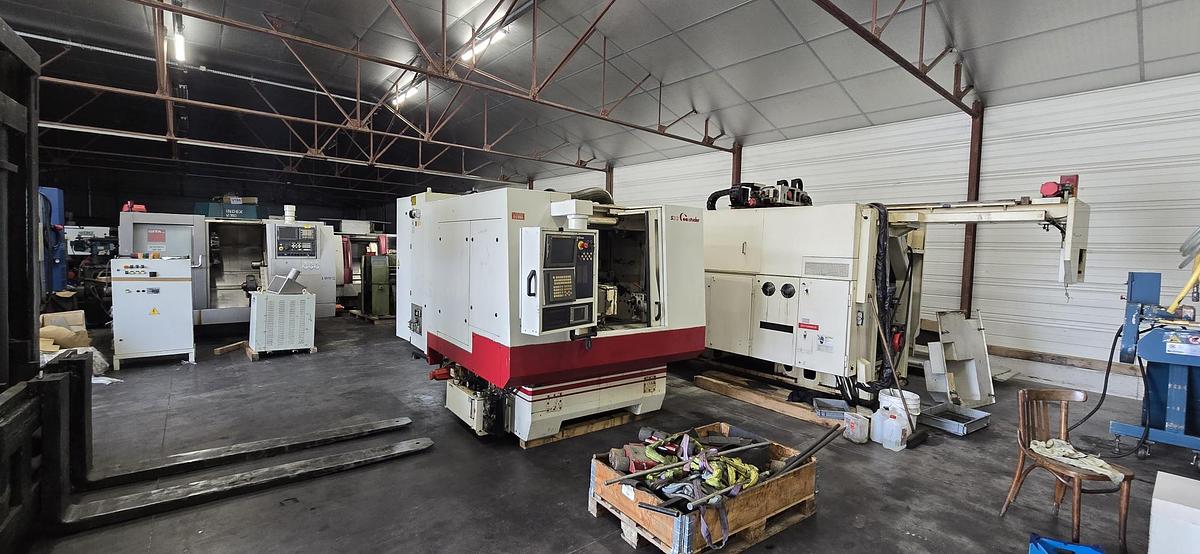

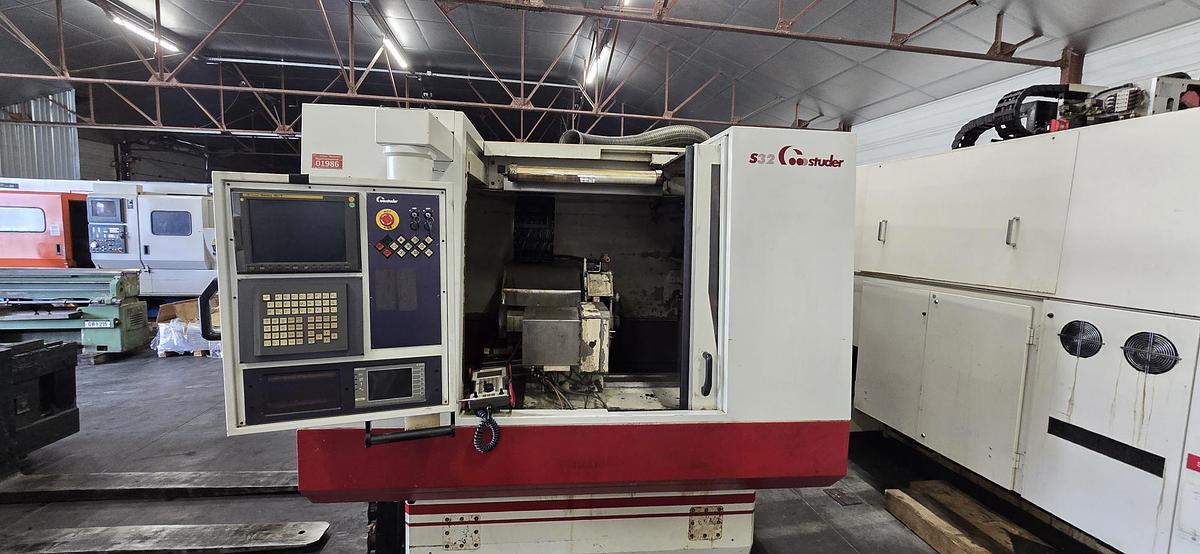

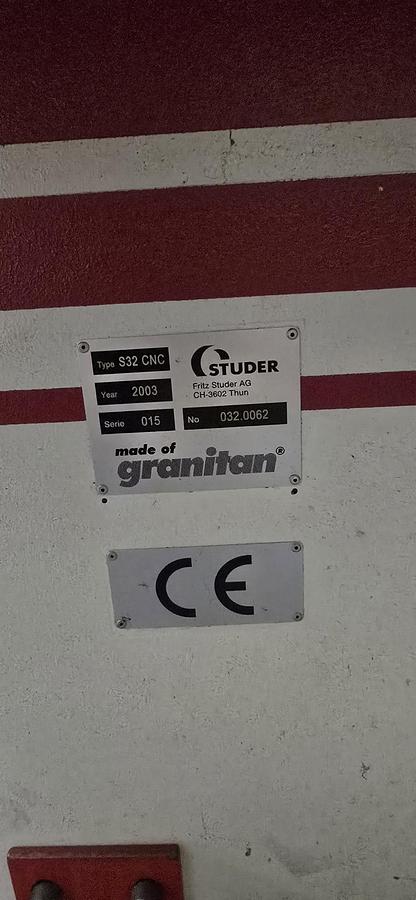

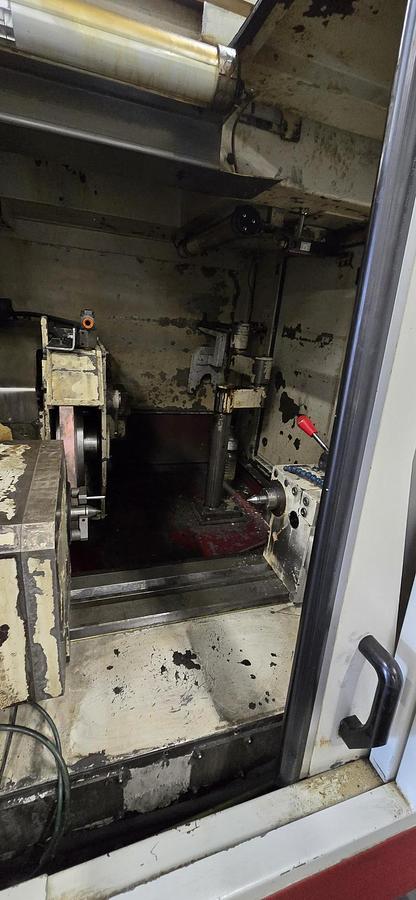

GRINDING MACHINE STUDER S32

Machine Capacities

·         Distance between centers (Max. distance): 400 mm

·         Center height: 175 mm

·         Maximum grinding diameter: 350 mm

·         Maximum workpiece weight: Up to 80 kg or 120 kg (depending on between-centers or live-spindle/chucked mounting)

Travel Axes

·         X-Axis (Transverse): * Travel: 300 mm

o    Linear resolution: Up to 0.0001 mm

·         Z-Axis (Longitudinal): * Travel: 485 mm

o    Linear resolution: Up to 0.0001 mm

·         Guideways: Preloaded hydrostatic guideways (anti-friction/anti-stick-slip) patented by Studer

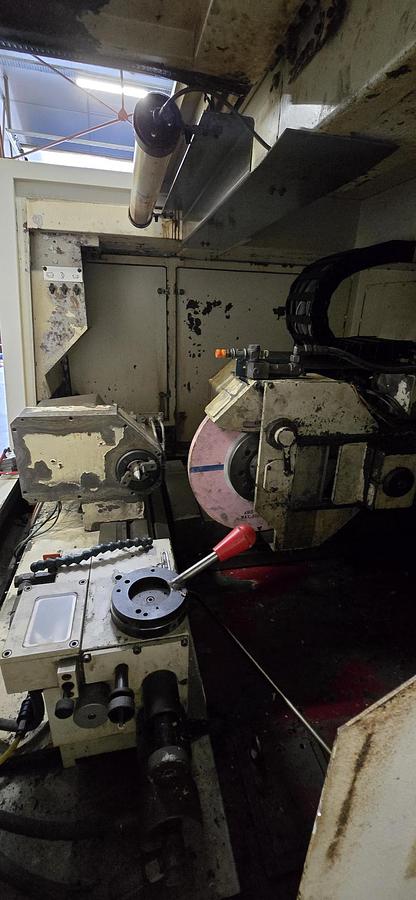

Wheelhead

·         Standard grinding wheel dimensions: 500 mm × 63 mm (bore: 203 mm)

·         Spindle motor power: 7.5 kW

·         Grinding wheel speed: Continuously adjustable from 1,400 to 3,200 rpm

·         Swiveling range: +/- 8.5°

Workhead

·         Spindle taper: ISO 50 / MT5

·         Workpiece speed range: Adjustable from 1 to 1,000 rpm

Tailstock

·         Internal taper: MT3 (Morse Taper 3)

·         Quill travel: 80 mm

·         Quill diameter: 50 mm

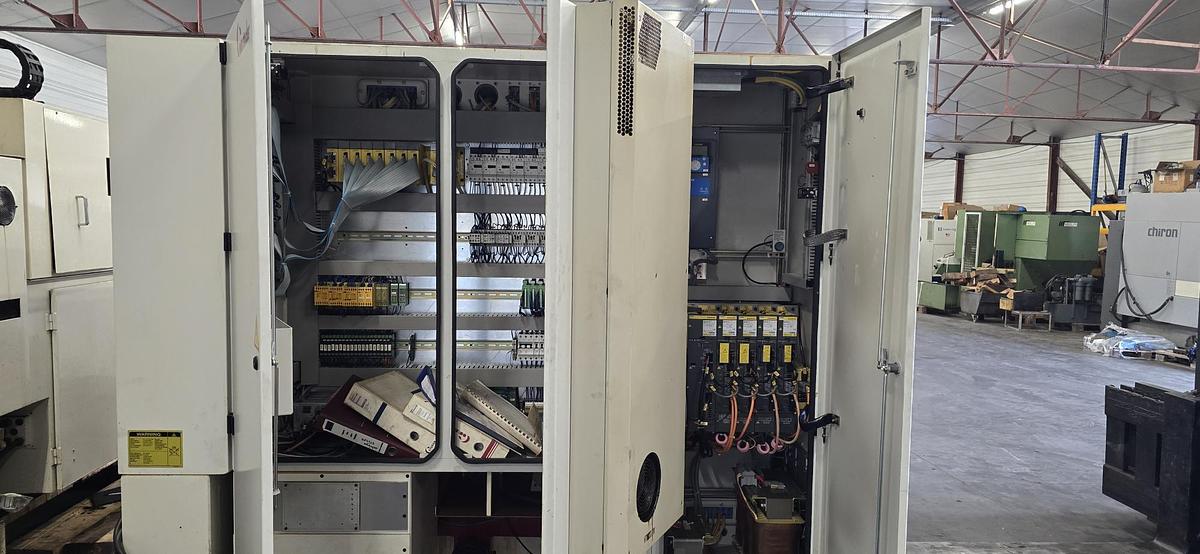

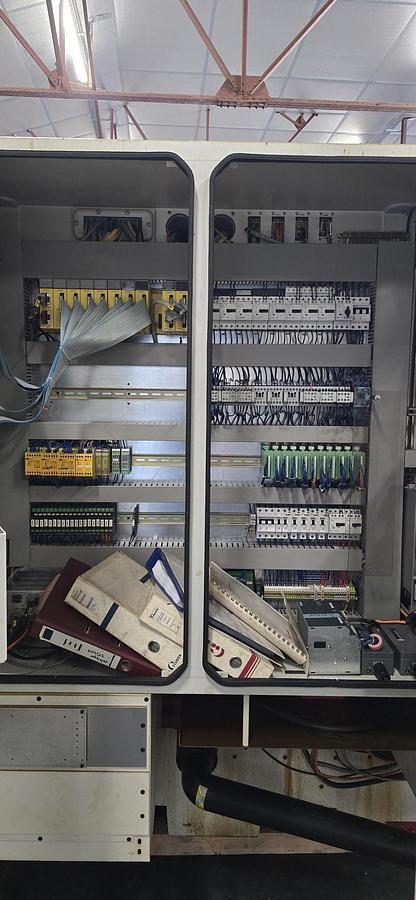

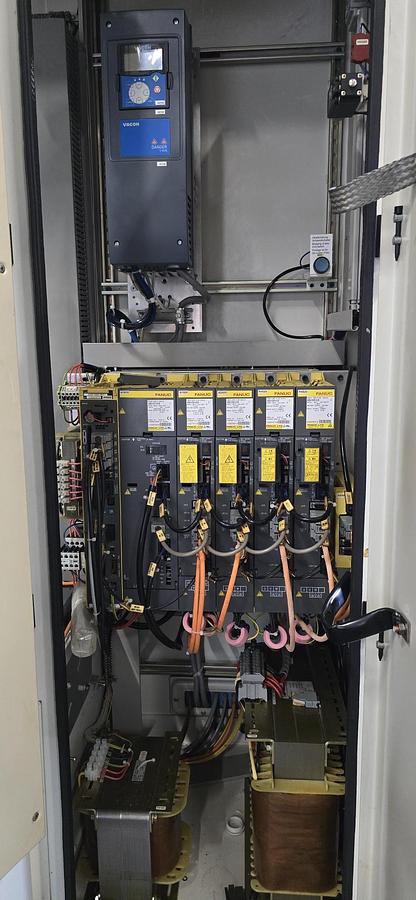

CNC & Control System

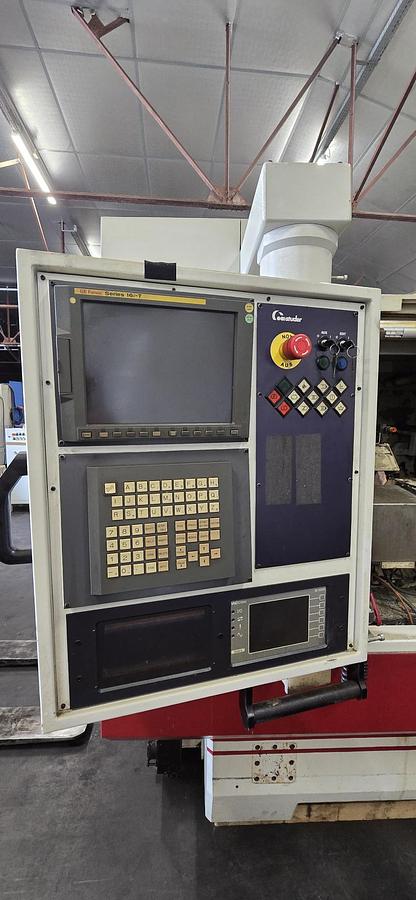

·         CNC: GE Fanuc Series 16i-T

Overall Dimensions and Weight

·         Machine weight: 3,200 kg

·         Average footprint: 2.4 m (length) × 2.0 m (width) (excluding filtration/coolant systems).
