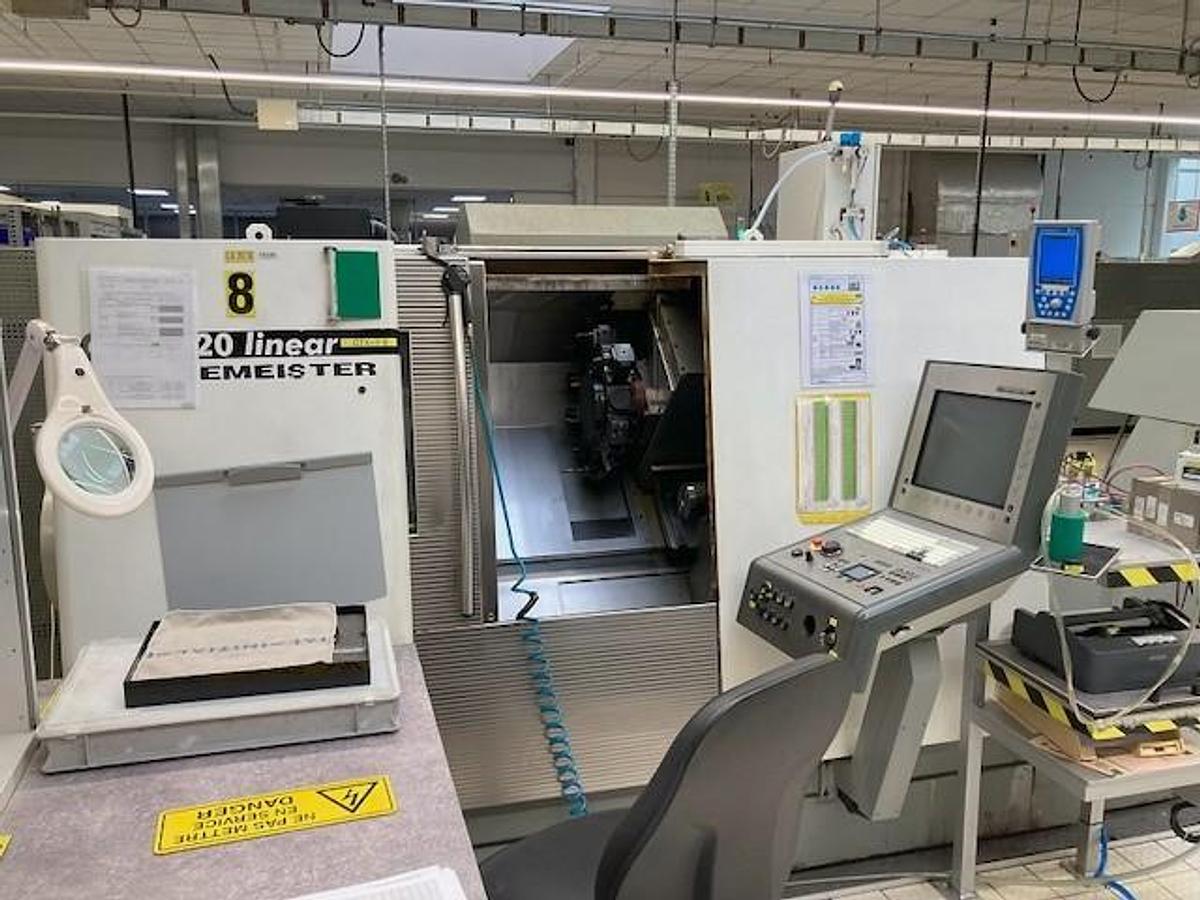

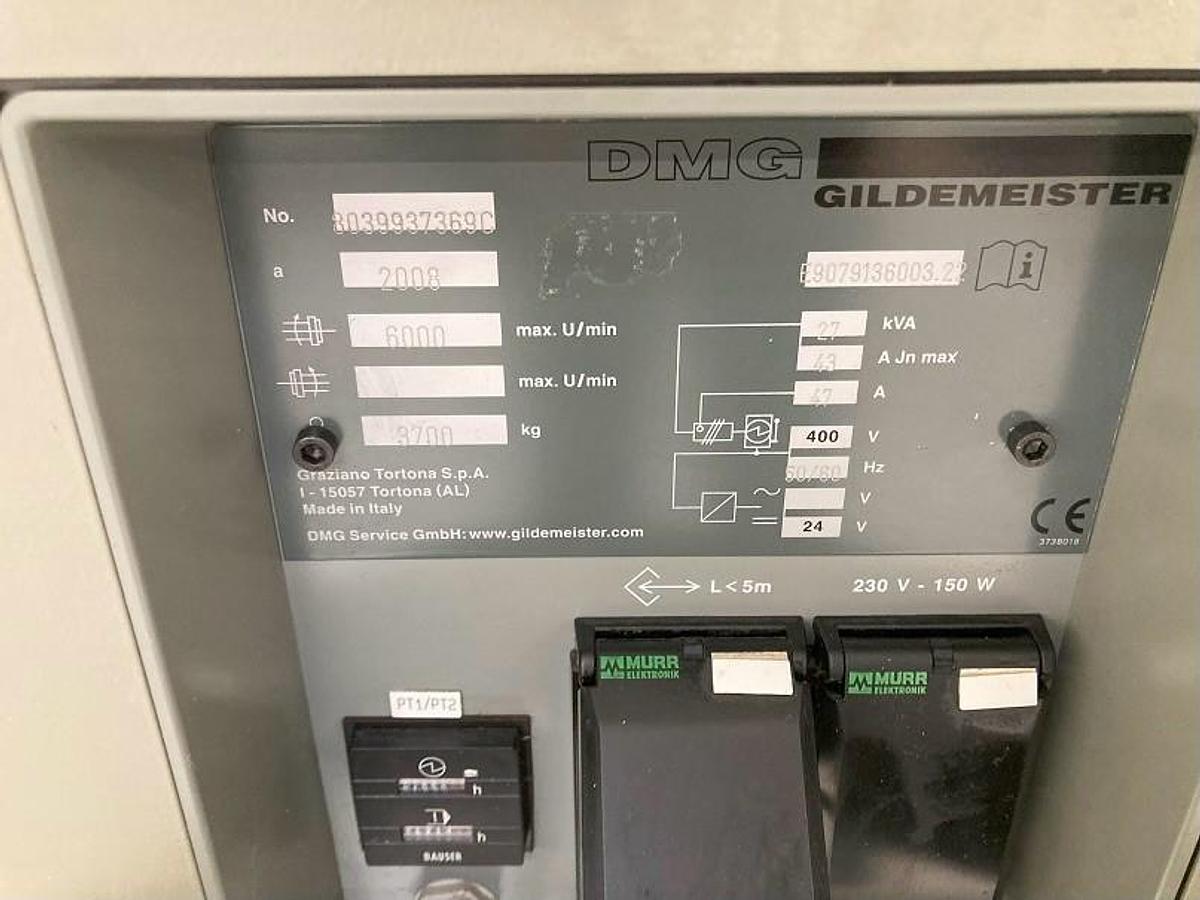

CTX 320 Linear 4 axis

Description

turning diameter max. 400mm

turning length 600mm

control iT Plus Heidenhain

greates pass round over bed 500mm

Swing dia. over traverse guideway 300mm

centre distance 615mm

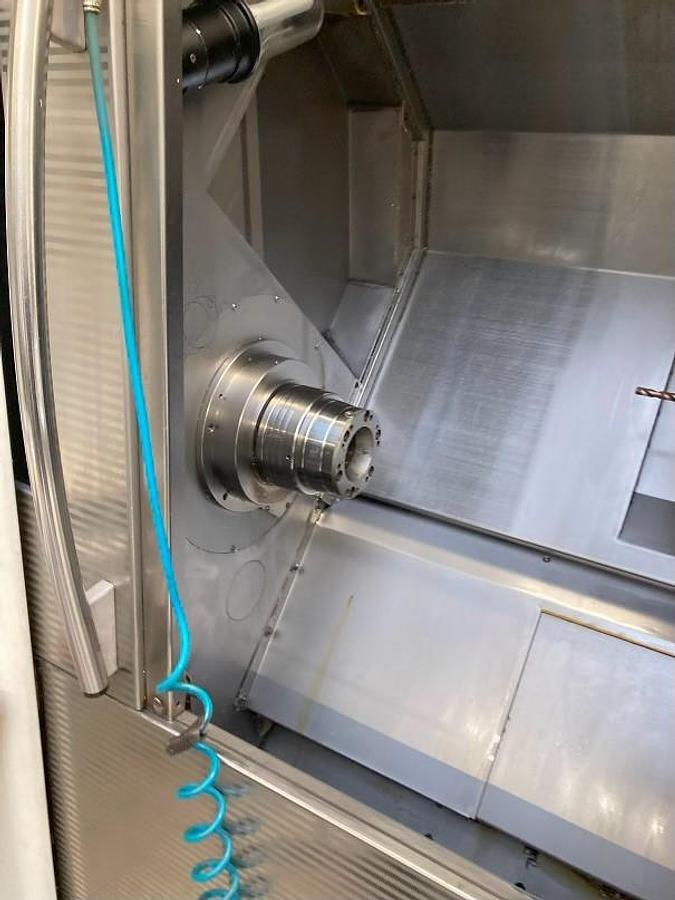

Main spindle:

turning speed range - main spindle 20 - 6.000min/-1

power capacity - main spindel 16kW

max. Torque 155Nm

spindle diameter in front bearing 100mm

spindle bore 61mm

max. usable bar diameter ( - )mm

spindle nose 140H5

collet chuck

C-Axis 0,001°

C-Axis 0,001°

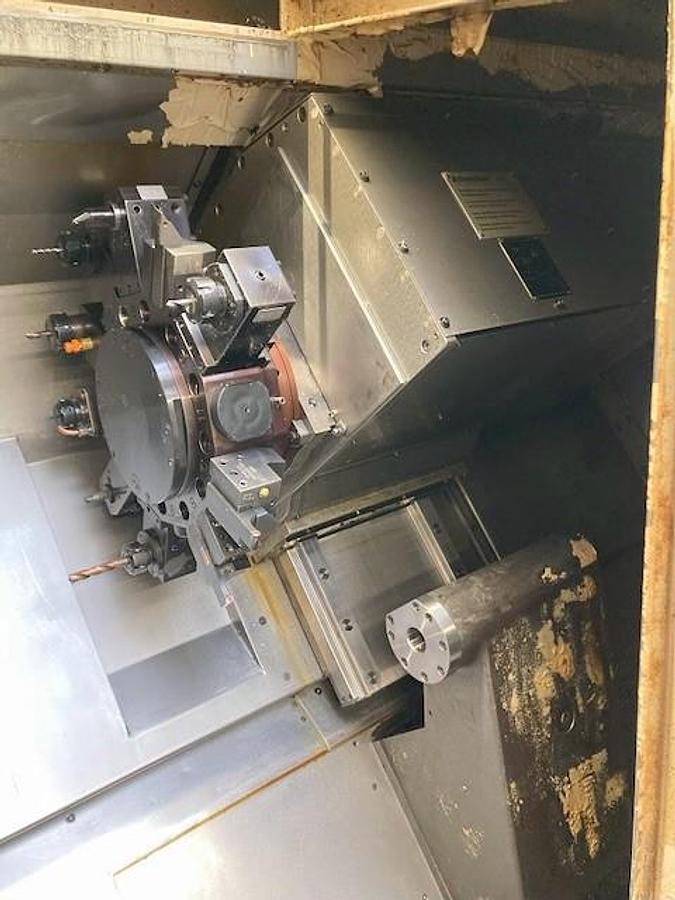

turret:

number of toolpositions 12pos.

Number of driven toolspositions 12pos.

Spindle speed - driven tools max. 5.000min -1

power capacity - driven tools 3,7kW

max. Torque 24Nm

tool taper VDI 30

Tool dimensions with square shank 20 x 20mm

axis stroke:

x-axis 160mm

y-axis +/- 32mm

z-axis 450mm

feeds:

rapid traverse X: 60m/min

rapid traverse Z: 45m/min

Feed force X: 2,5kN

Feed force Z: 4kN

rapid traverse C: 2001/min

max. Torque C: 155Nm

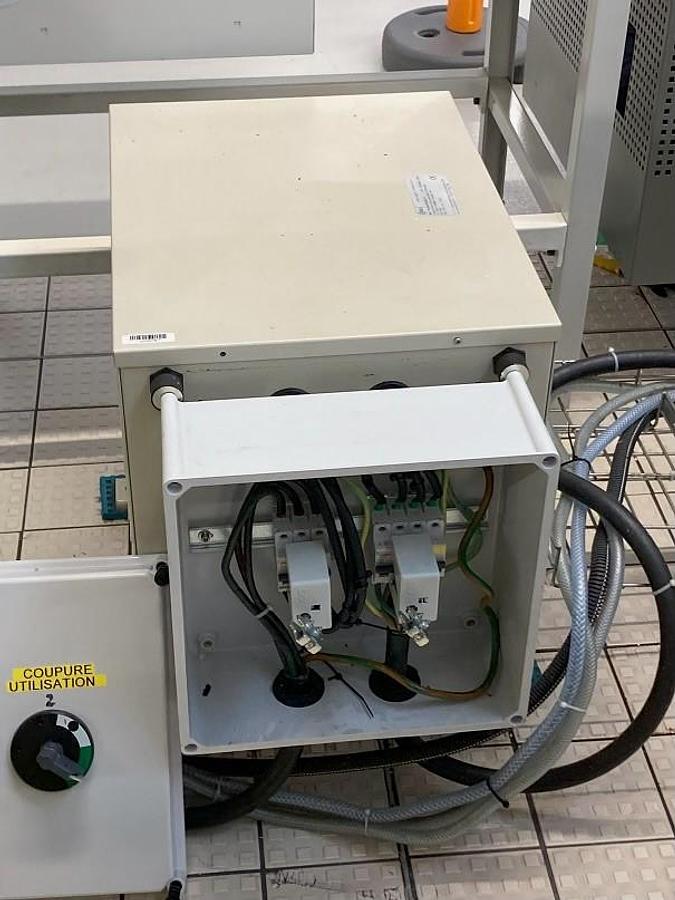

total power requirement 34kVA

weight of the machine ca. 4,5t

dimensions of the machine ca. 8,0 x 3,0 x 2,7m

Documents

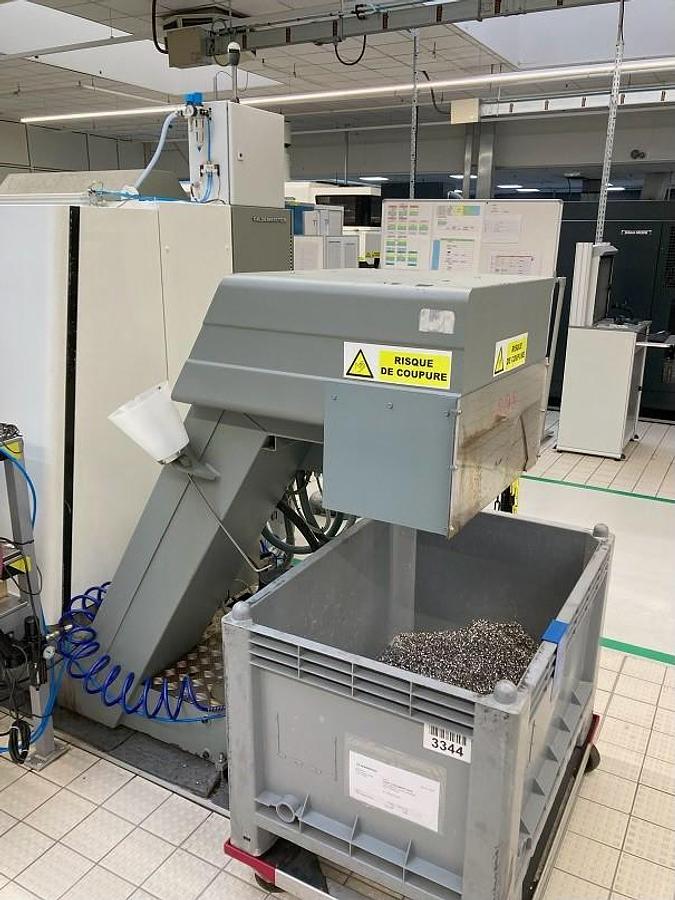

Chip conveyor

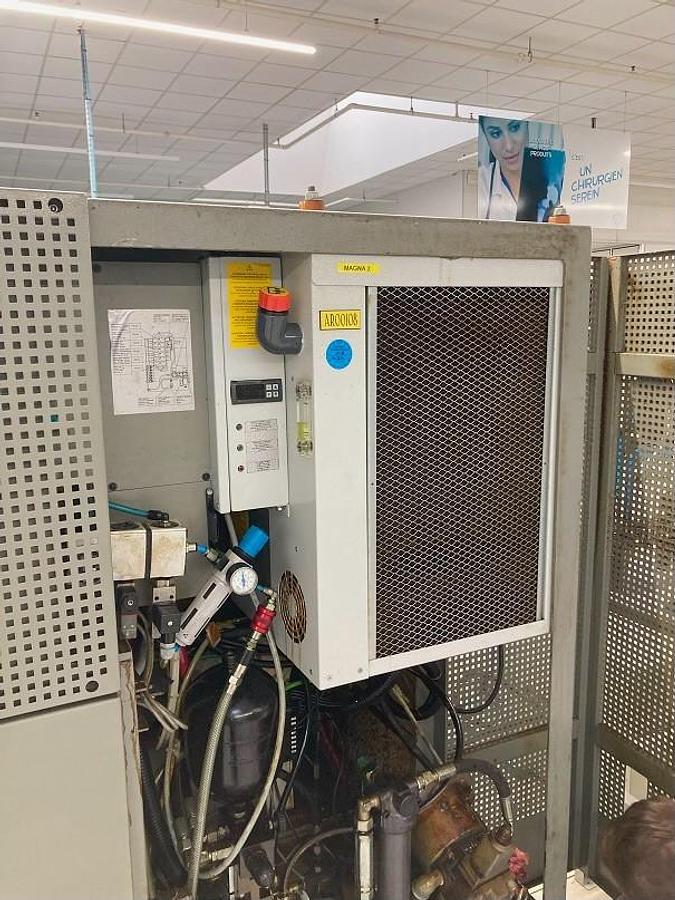

Coolantsystem 12 bar

TAILSTOCK

C-axis

Turret

Tool drive

parts catcher

collet chuck

fixed tool-holders 5

live tool holders 3

hydraulic system

Details

1.       CNC:Heidenhain

2.     CNC version:iT Plus

3.     Y axis:Yes

4.     Turning lenght:600 mm

5.     Turning diameter:400 mm

6.     Bar work capacity :52 mm

7.     Spindle nose:5 JIS A-2 / ASA

8.     rpm:6000

9.     Spindle power:16 kW

10.  X stroke:160 mm

11.    Z stroke:450 mm

12.  Y stroke:64 mm

13.  Tailstock:No

14.  Chuck diameter:210 mm

15.  Chip conveyor:Yes

16.  Number of turrets:1

17.  Number of live tools:12

18.  Number of y axes:1

19.  Number of c axes: 1

TAILSTOCK

Conditions and size
