1999 SPINNER TC 32
1999 SPINNER TC 32
or
Call 330388720247
Description

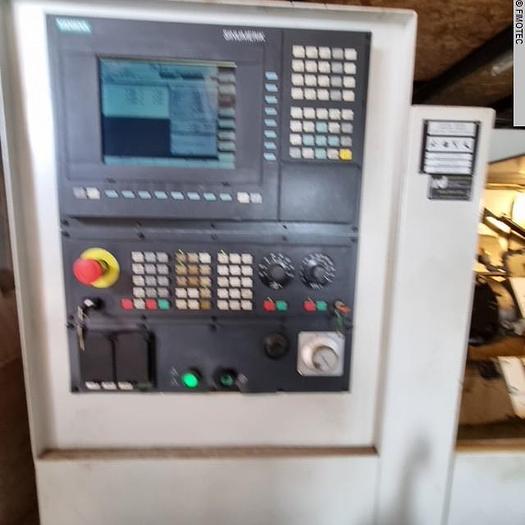

CNC CONTROL SIEMENS 810 T
Specifications
| Manufacturer | SPINNER |
| Model | TC 32 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 1105-03620 |
| Controls | CNC, SIEMENS 810 D |
| Country of origin | Germany |
| Delivery time | Immediate |
| Delivery terms | ex Site |
| Turning diameter | 150 mm |
| Turning length | 300 mm |
| Swing diameter | 300 mm |
| Swing diameter over face slide | 150 mm |
| X-axis | 400 mm |
| Z-axis | 285 mm |
| Spindle passage | 32 mm |
| Spindle motor | 7,5 kW |
| Spindle turning speed - stepless | 8000 U/min |
| C-axis | 0,001° |

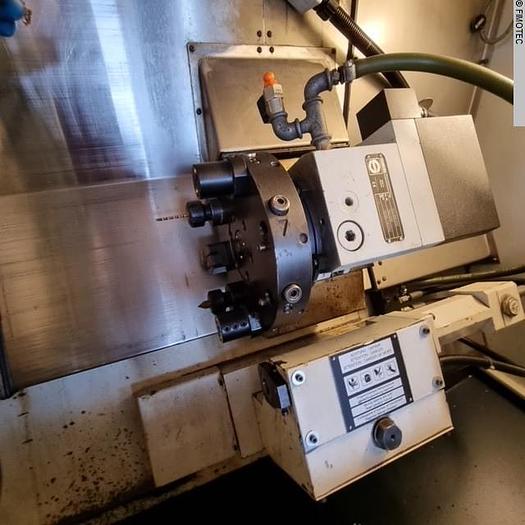

| Turret positions | 12-fach VDI 25 |
| Work piece power | 1,2 kW |
| Toolpiece turning speed range | 6000 U/min |
| Weight of the machine ca. | 1.8 t |
| Dimensions of the machine ca. | 2 X 1 X 1.6 m |
