2004 GILDEMEISTER CTX 320 V6
No longer available

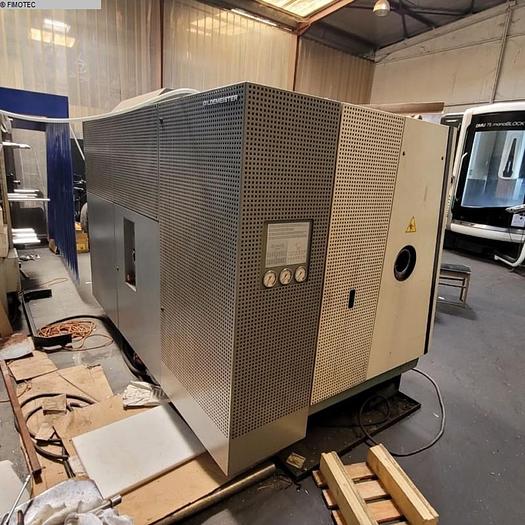

2004 GILDEMEISTER CTX 320 V6
Description

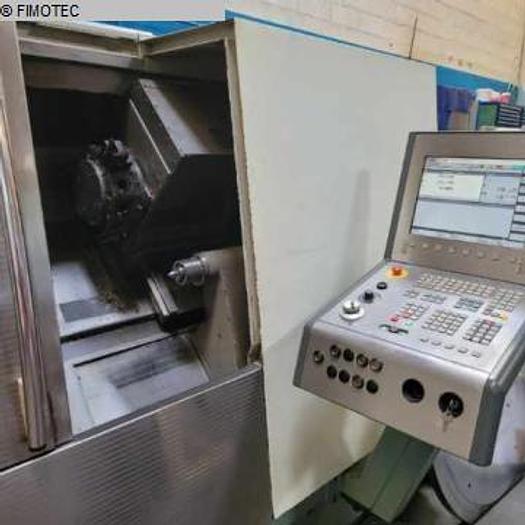

CNC SIEMENS

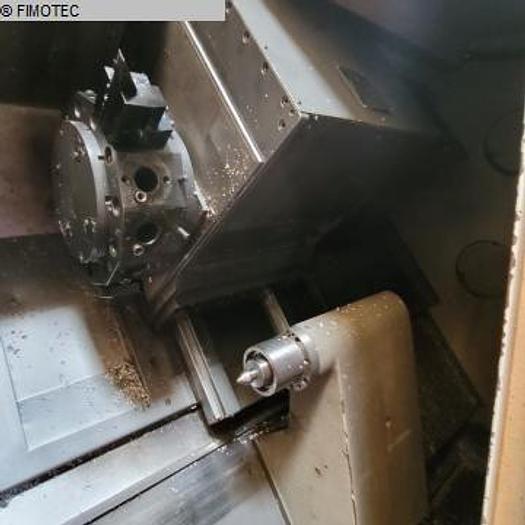

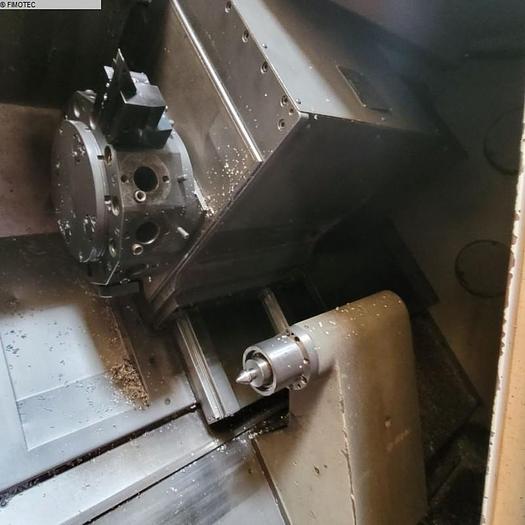

WITH C AXIS AND Y AXIS AND TEISTOCK AND CHIP CONVOYER

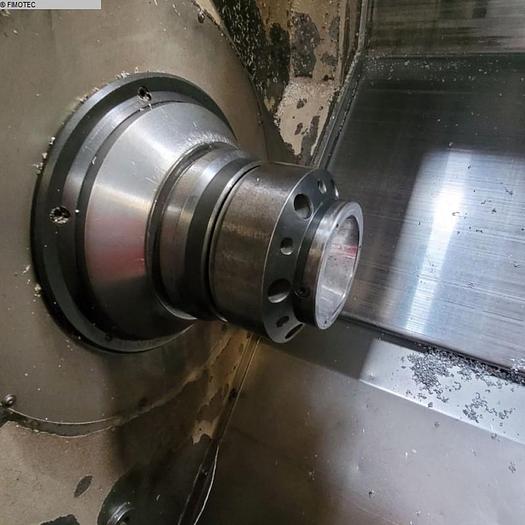

1 X HAINBUCH COLLECT CHUCK
Specifications
| Manufacturer | GILDEMEISTER |
| Model | CTX 320 V6 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 1105-03679 |

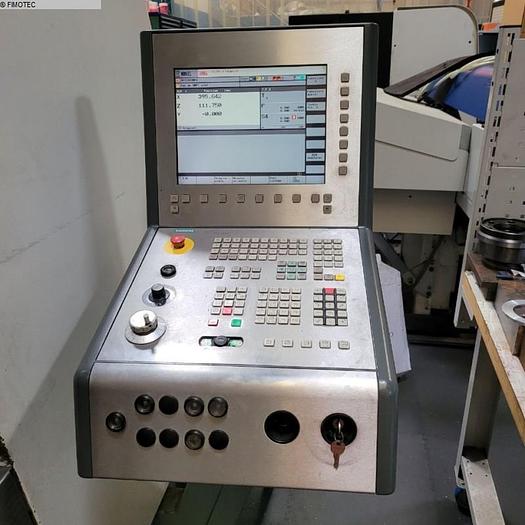

| Controls | CNC, SIEMENS 840 D |
| Country of origin | Germany |
| Delivery time | Immediatly |
| Delivery terms | Ex site |
| Turning diameter | 505 mm |
| Turning length | 450 mm |
| Chucking diameter | 250 mm |
| Bar material dia. | 51 mm |
| Turning diameter over bed slide | 375 |
| X-travel | 450 mm |
| Z-axis | 450 mm |
| Spindle turning speed range | 25 - 6000 U/min |
| Spindle drive | 16 / 12 kW |
| Max. torque on the spindle | 153 / 115 Nm |
| Rapid travel - longitudinal/face | 60/12/45 m/min |
| C-axis | 0,001 / 360 ° |
| Number of driven tools | 12 mm |
| Shank diameter | 30 mm |
| Power capacity | 9 / 6,7 kW |
| Turning speed range | 6000 U/min |
| Total power requirement | 29 kW |
| Weight of the machine ca. | 3,7 t |
| Dimensions of the machine ca. | 3,0 x 2,2 x 2,0 m |
