1998 DAINICHI F 250 MC

Machine-Details

Stock-No. 1105-03909

Type of machine CNC Lathe - Inclined Bed Type

Make DAINICHI

Type F 250 MC

Year of manufacture 1998

Type of control CNC

Storage location HAGUENAU FRANCE

Country of origin Japan

Delivery time IMMEDIATELY

Freight basis EXW (Incoterms 2000)

Technical details

turning diameter 410 mm

turning length 600 mm

control FANUC 18I T

swing dia. 480 mm

swing diameter over cross slide guide 410 mm

Distance between centres 670 mm

travel -x axis 230 mm

travel -z axis 670 mm

turning speed range 35- 3500 1/min

transmission ratio 2

spindle taper JIS A2-8

spindle bore 92 mm

Motor output 15 kW

no. of tools in turret 1 12

total power requirement 35 kW

weight of the machine ca. 4,5 t

dimensions of the machine ca. 2,7 x 1,7 X 1.8 m

Accessories

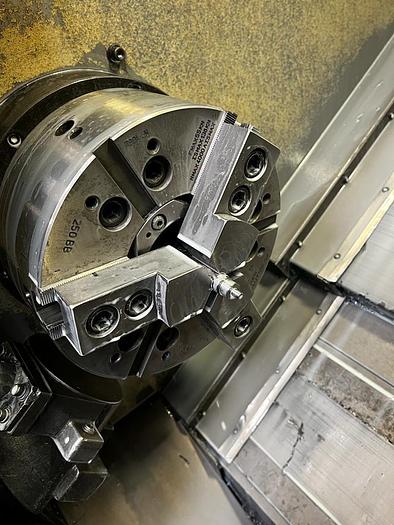

Chuck unit with chuck 250 mm

Additional information

First class, well maintained machine.

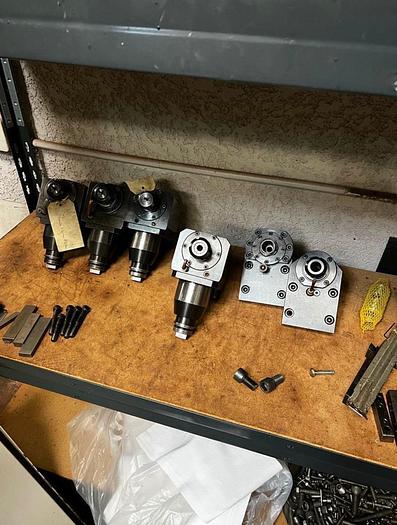

Machine equipped with C AXIS LIVE TOOLS TOOL

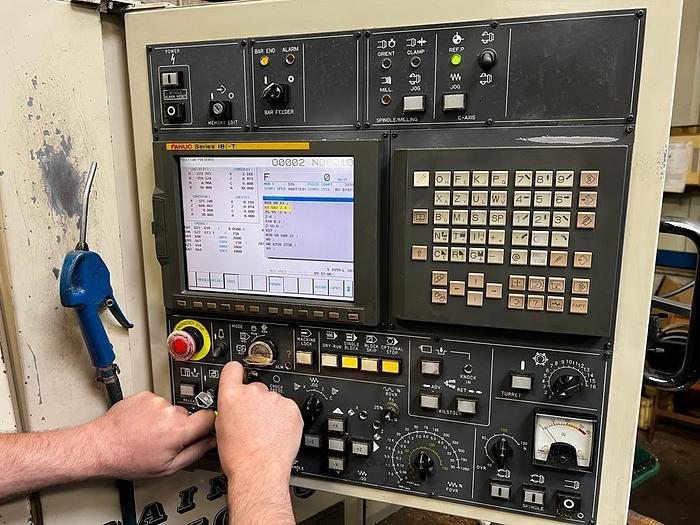

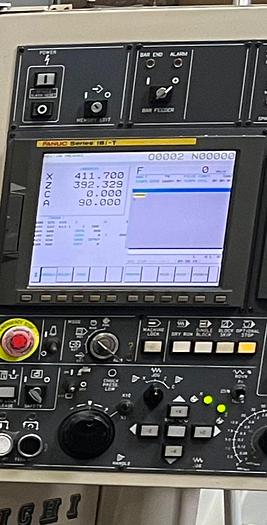

Control FANUC 18ITA with CAP II Dialog Control.

CHIP CONVOYEUR
