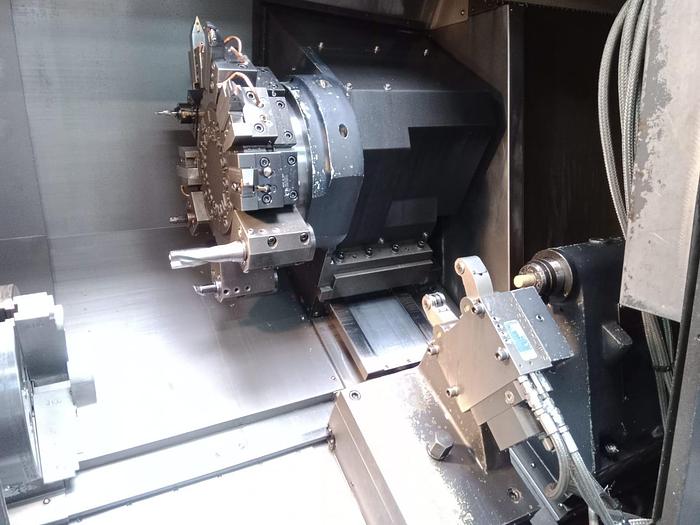

2012 DOOSAN DAEWOO PUMA 2100 LM

Machine-Details

Stock-No. 1105-03941

Type of machine CNC Turning- and Milling Center

Make DOOSAN daewoo

Type PUMA 2100 lm

Year of manufacture 2012

Type of control CNC

Storage location FRANKREICH

Country of origin Korea

Delivery time by arrangement

Freight basis ex. location

Technical details

turning diameter 406 mm

turning length 830 mm

control FANUC

travel -x axis 260 mm

travel -z axis 830 mm

rapid travel - longitudinal/face 24 m/min

c-axis 20 min-¹

spindle bore diameter 76 mm

spindle drive 18.5 kW

milling spindle motor 7.5 kW

spindle speed: 4500 min-¹

Number tool positions lower turret 12

Stations which are driven 12

total power requirement ca 40 kVA

weight of the machine ca. 7000 kg

dimensions of the machine ca. 3.5 x 2.3 x 2.2 m

Additional information

PUMA 2100 LM

- Control FANUC

- Spindle bore 76

- SPINDEL 1 CHUCK 25 MM 18.5 KW 4500 RPM

- The machine has 1830 mm turn length

- Bal screw instead of Rack and Pineon

turret has 12 POSITION

Swarf conveyor

- High preassure coolant pump 7 bar

STAEDY DIA 20-180 MM
