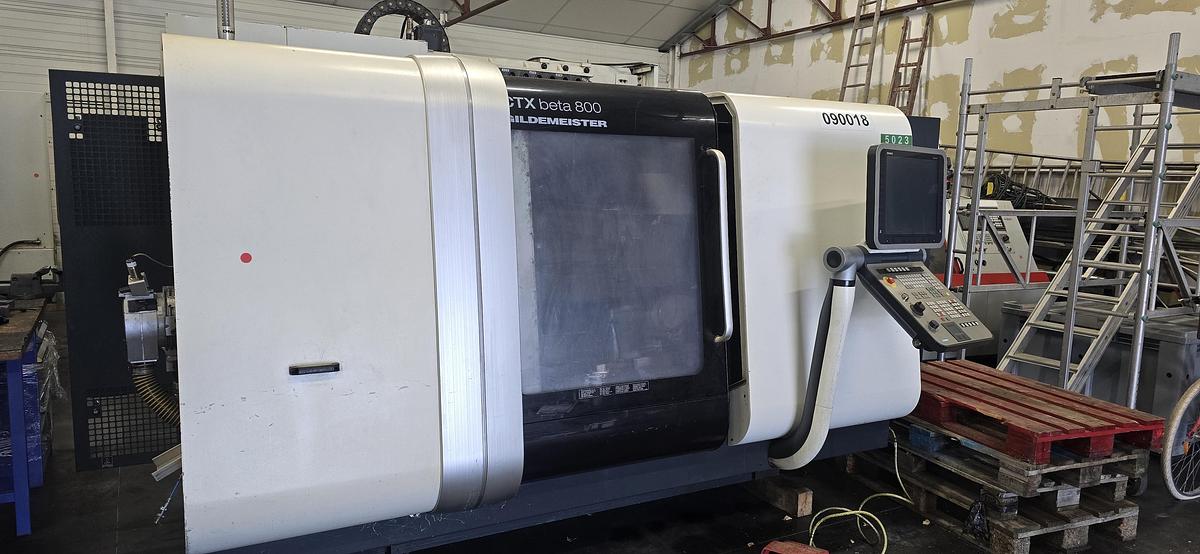

CTX BETA 800

Control System

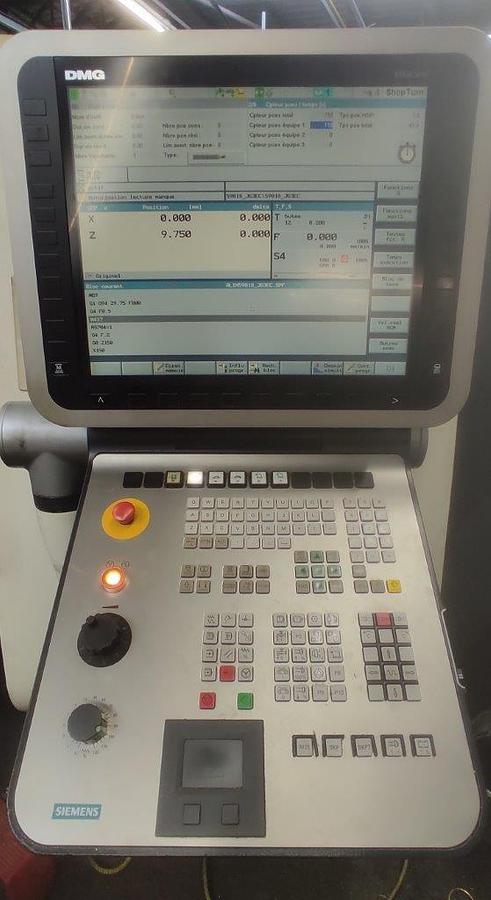

• ​CNC Control: Siemens 840D

​Main Capacity

• ​Max. Turning Length: 800 mm
• ​Max. Turning Diameter: 410 mm
• ​Swing over Bed: 700 mm

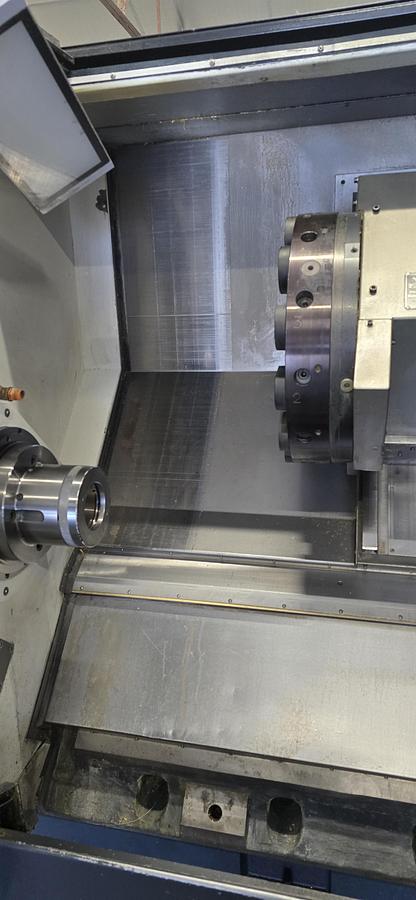

​Turret & Tooling

• ​Turret Type: 12-station disc turret
• ​Tool Holder: VDI 40
• ​Live Tooling: Yes, 12 stations for driven tools
• ​Live Tool Speed: up to 10,000 rpm

​Axes

• ​Main Axes: X, Z
• ​C-Axis: Yes
• ​Y-Axis: +/- 60 mm

​Spindle & Tailstock

• ​Main Spindle Speed: up to 5,000 rpm
• ​Tailstock: Yes

​Included Accessories

• ​Parts Catcher: Yes
• ​Collet Chuck: Yes
• ​Chip Conveyor: Yes
