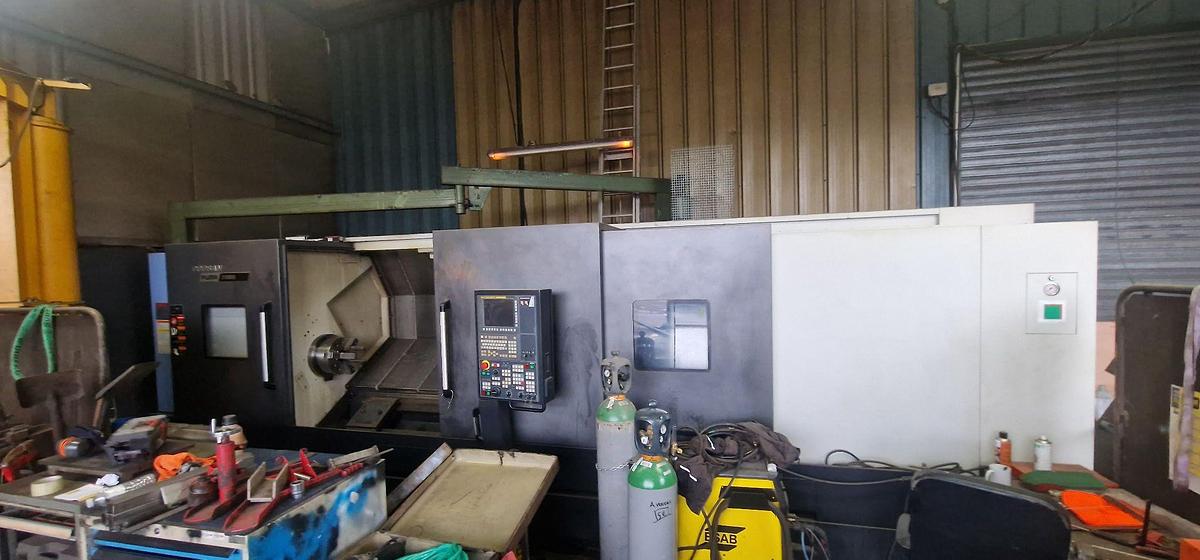

DOOSAN 3100 UL

• Manufacturer: DOOSAN (DN Solutions)

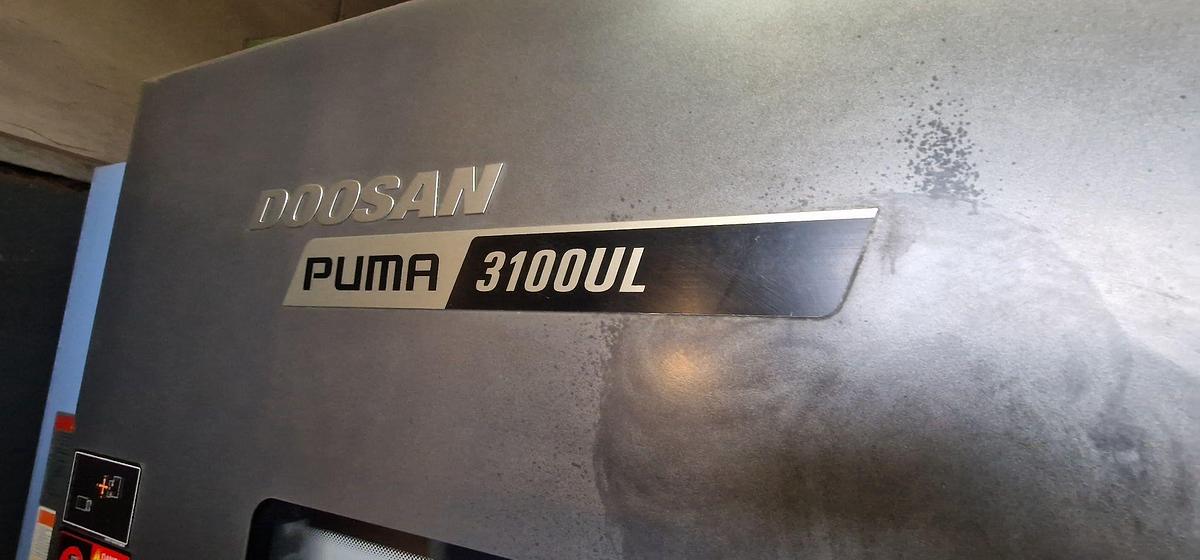

• Model: PUMA 3100UL
• Year of Manufacture: 2019
• Machine Type: 2-Axis Horizontal Turning Center

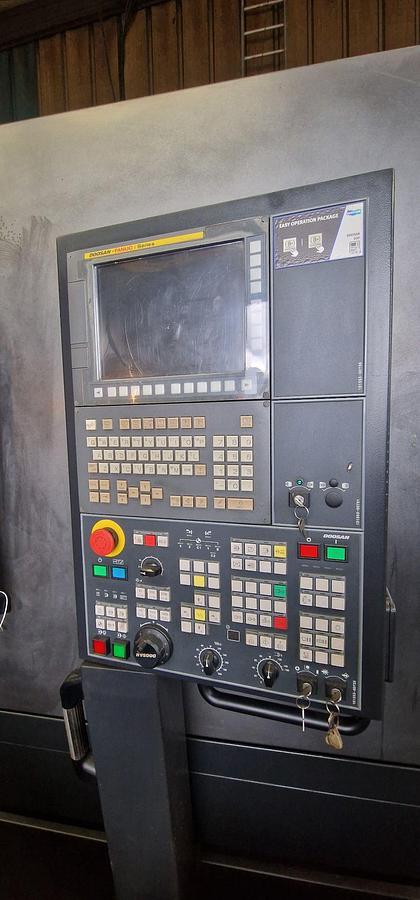

• CNC Control: Fanuc i-Series

Capacity

• Max. Turning Length: 3,125 mm
• Max. Turning Diameter: 525 mm
• Swing Over Bed: 850 mm
• Swing Over Carriage: 670 mm

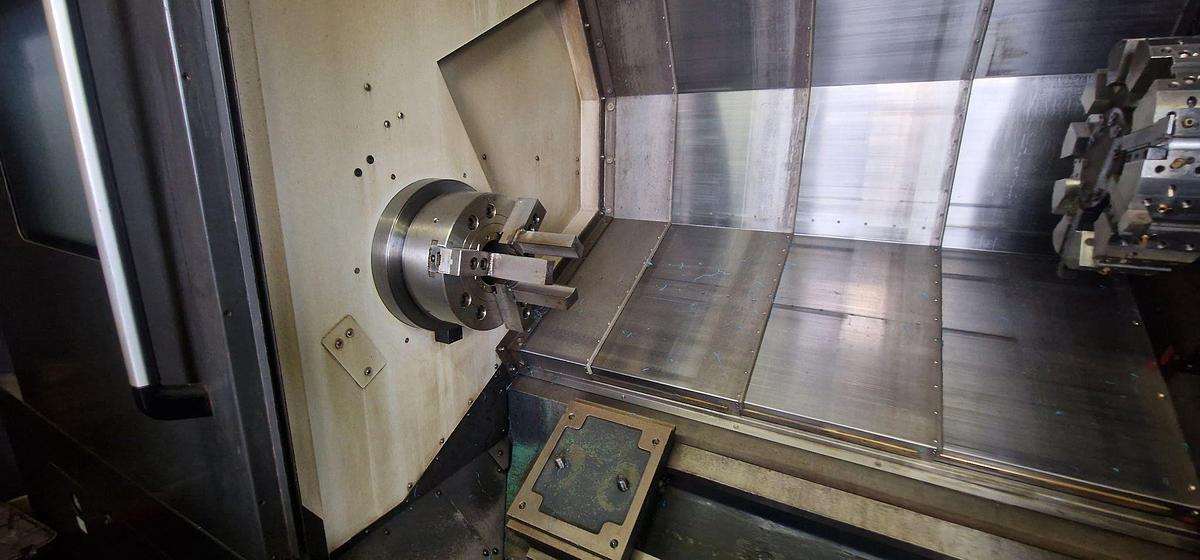

Main Spindle

• Chuck Size: 315 mm
• Spindle Speed: 2,800 RPM
• Spindle Bore Diameter: 102 mm
• Spindle Nose: A2-11
• Drive System: Gearbox / Belt (High torque)

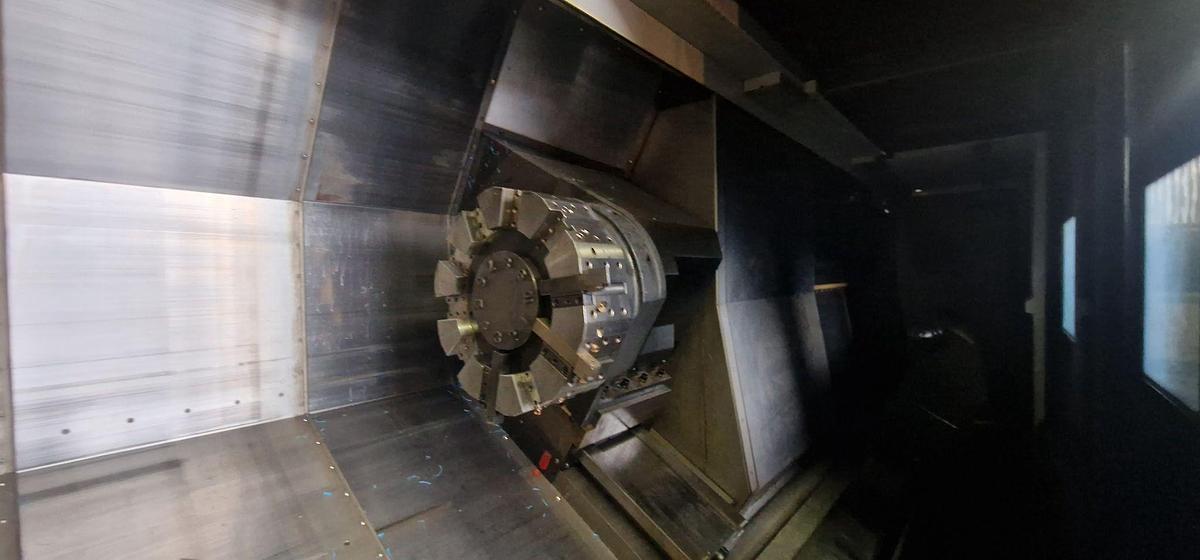

Turret

• Number of Stations: 10 Tools
• Tool Size (Square): 25 mm
• Tool Size (Boring Bar): 50 mm

Tailstock & Steady Rest

• Tailstock Type: Hydraulic
• Tailstock Quill Taper: MT #5
• Steady Rest (Lunette): Hydraulic (Included)

Axis Travel

• X-Axis Travel: 293 mm
• Z-Axis Travel: 3,135 mm
• Rapid Traverse (X/Z): 30 / 18 m/min

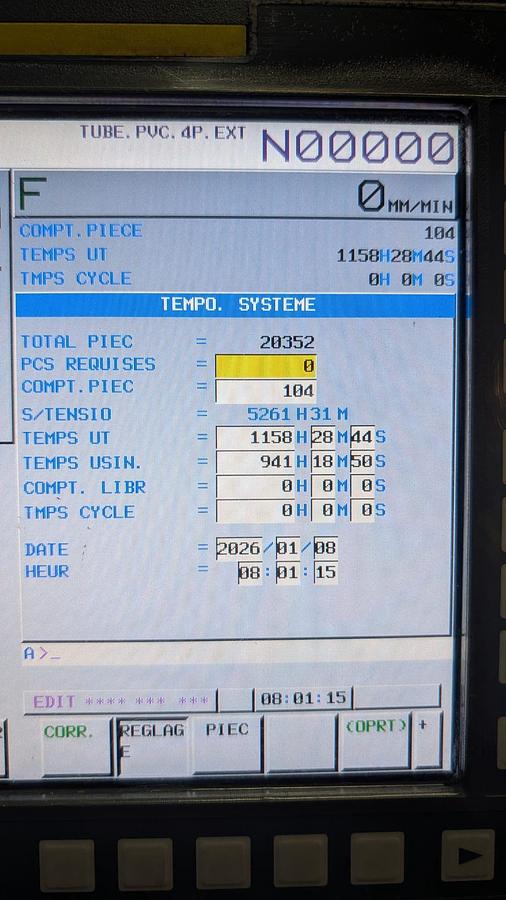

Operating Hours

• Power On: 5,100 H
• Spindle Time: 1,100 H

Machine Dimensions

• Length: 6,435 mm
• Width: 2,012 mm
• Height: 2,110 mm
• Weight: 11,600 kg
