DMG DMC 635V

Base Machine Specifications

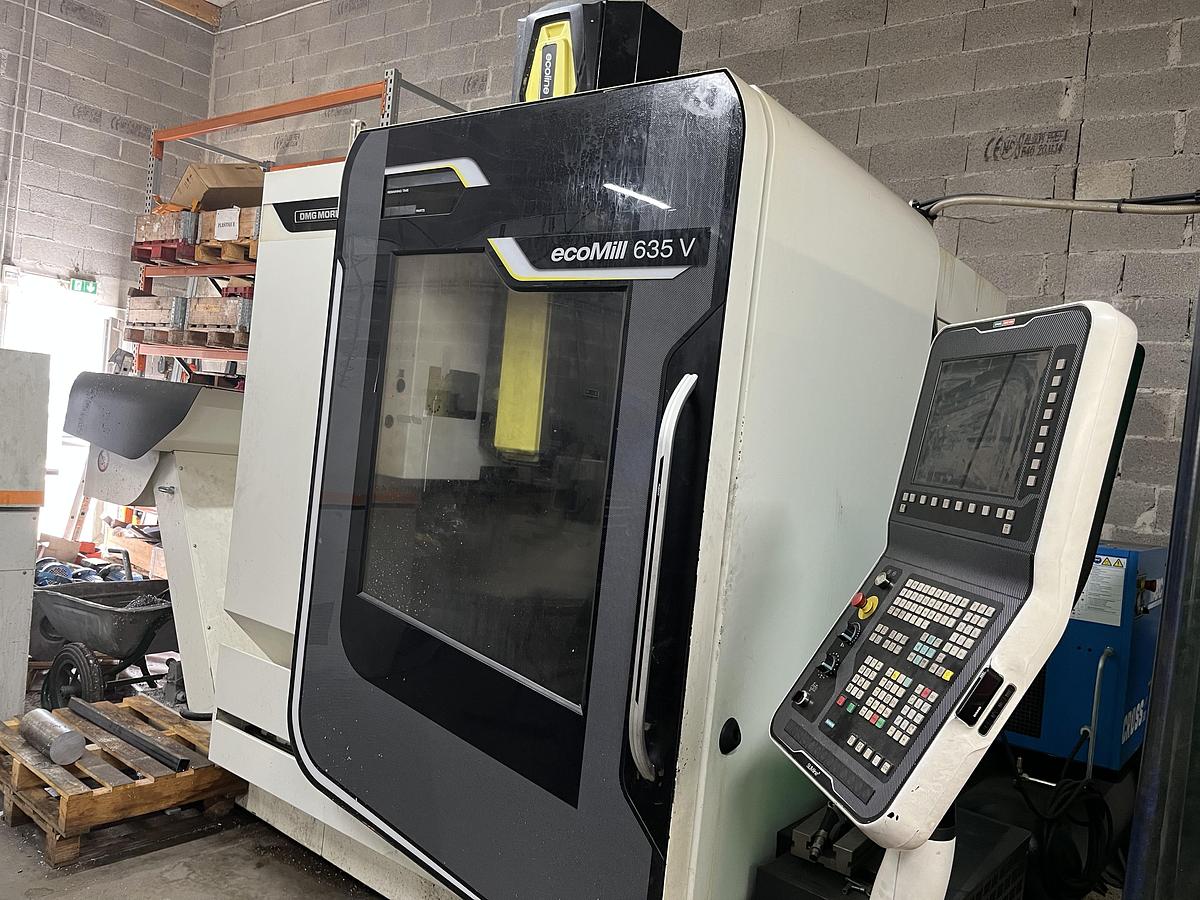

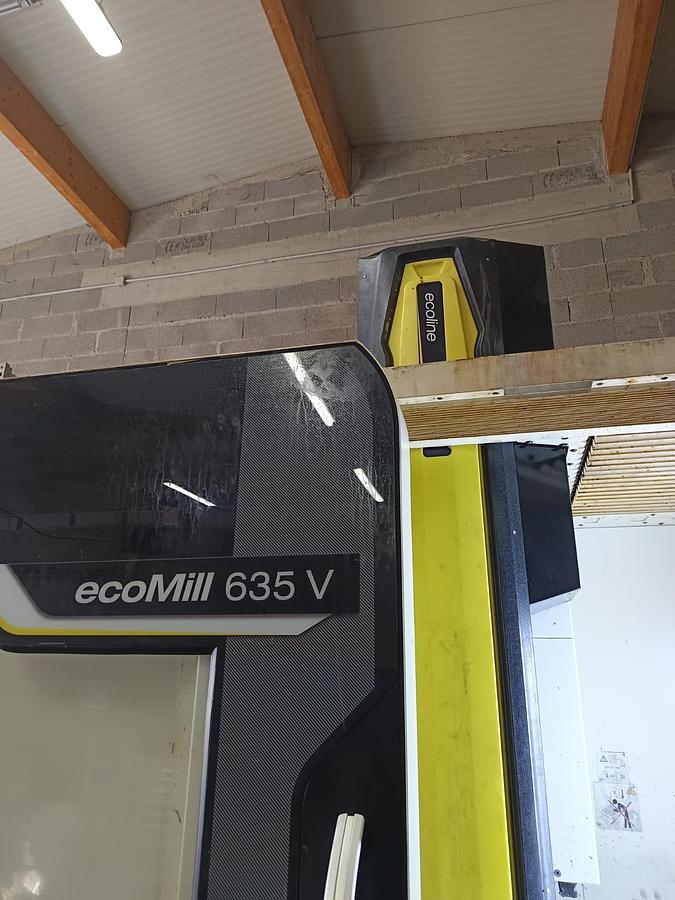

·         Type: ecoMill 635 V Vertical Machining Centre

·         Travels: X = 635 mm, Y = 510 mm, Z = 460 mm.

·         Rapid traverse: 30 m/min.

·         Spindle speed: 20 to 12,000 rpm.

·         Main drive: AC 13/9 kW (40/100% duty cycle).

·         Tool taper: SK40 DIN69871.

·         Tool clamping: according to DIN69872.

·         Tool changer: 20-station SK40 (disc-type magazine with double gripper).

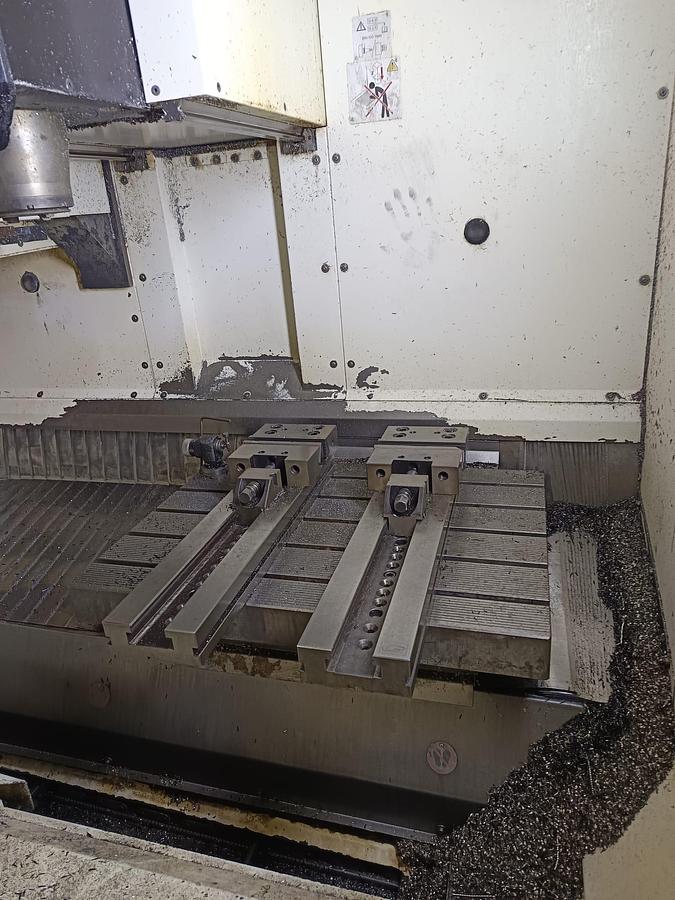

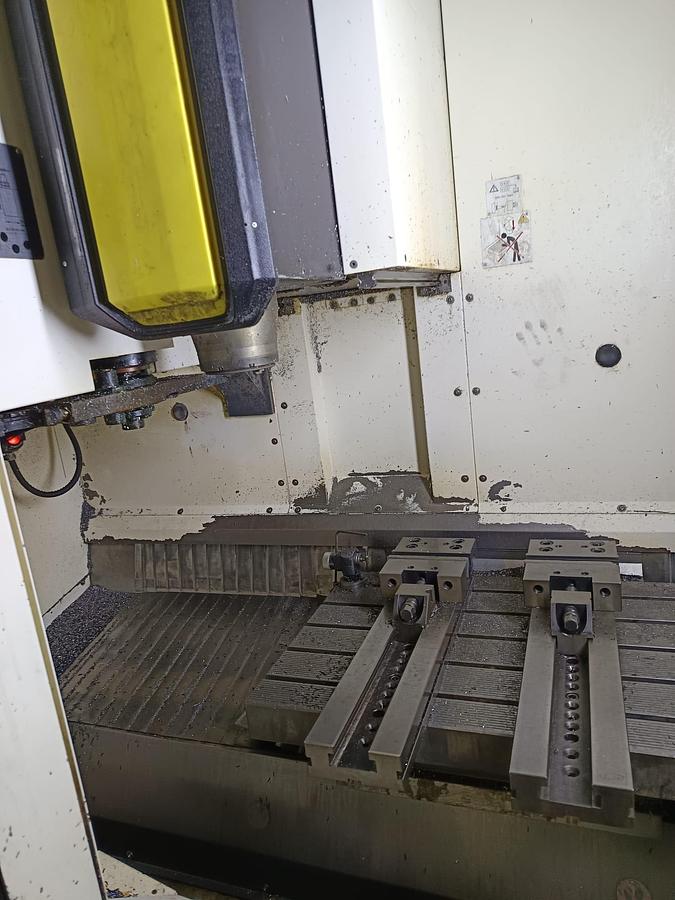

·         Table dimensions: 560 x 790 mm.

CNC Control and Software

·         Model: 3D Siemens 840D SL control with ShopMill console.

·         PROGRESSline & Planonlight: Display of production time and remaining number of parts.

·         DMG Netservice: Client installation on external PC.

Magazine and Drive Options

·         Extended tool magazine: 30 stations (chain-type with pockets and double gripper).

·         Measuring system: Direct displacement measuring system for X, Y, Z axes with pressurization.

Equipment and Accessories

·         RENISHAW probe kit: * OMP40-2 measuring probe with optical signal transmission.

o    OTS wireless measuring probe.

o    OMI-2T optical transmission module.

·         Chip disposal package: * Scraper-type chip conveyor (discharge height: 950 mm).

o    185-litre tank.

o    Cleaning spray gun and 4-colour signal lamp.

·         Control options: Electronic handwheel.

·         Electrical: 20 kVA transformer.

·         Tooling: Sandvik SK 40 tooling kit.

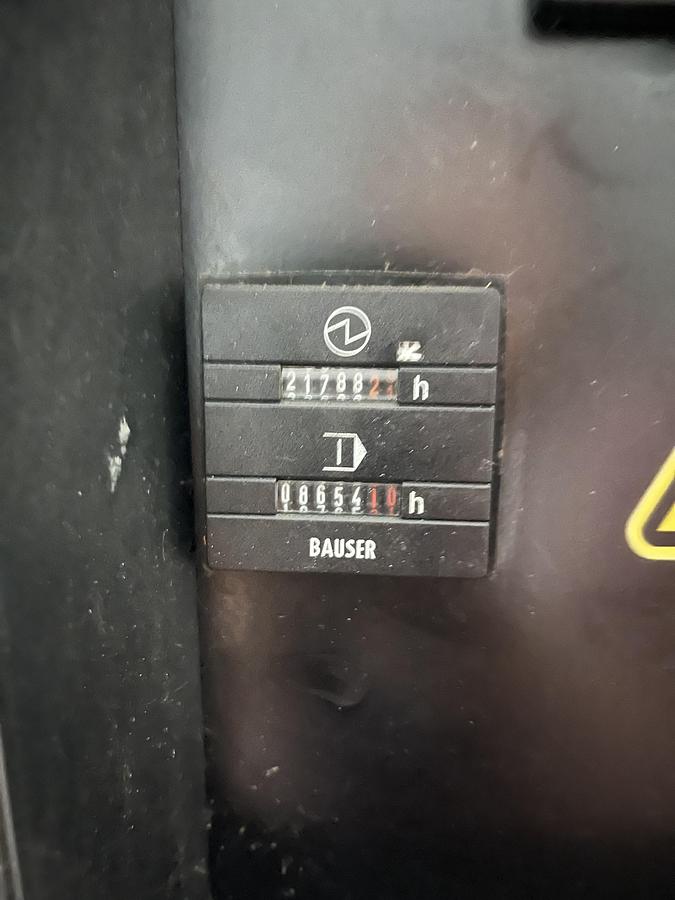

·  Power-on hours (21,788 h)

·  Spindle hours (8,654 h) :
